RLE - Leader Cable and EOL for Leak Detection Installations

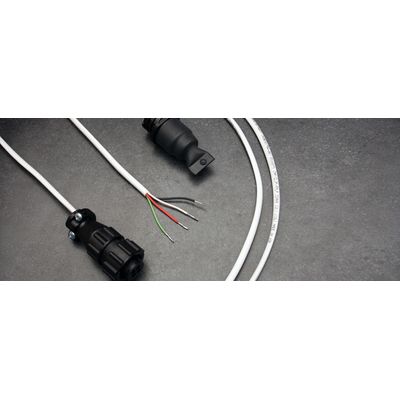

Leader cable and an EOL are necessary components for any leak detection system and are sold with most SeaHawk leak detection controllers. Since sensing cables cannot attach directly to a controller, the 15-foot (4.57 meters) leader cable connects the sensing cable to any SeaHawk leak detection controller.
An EOL terminator must be applied to the end of the length of sensing cable – it completes the leak detection circuit. Without an EOL, a length of sensing cable will register a cable break alarm.
Included With Most ControllersA leader cable and EOL are included with most SeaHawk leak detection controllers. These two components are sold together as a Leader Cable Kit (LC-KIT or LC-KIT-M, depending on whether you’re using conductive fluid or chemical sensing cable), or as individual components.
Since conductive fluid sensing cable and chemical sensing cable have different connectors, be sure to obtain the hardware that is compatible with your cable.
Connections: 22 AWG, 4 Conductors, Nominal Insulation Thickness .006 in. (.01524cm), Nominal Jacket Thickness 0.010 in. (.0254cm), Nominal O.D. 0.121 in. (.307cm), Hirose 4-pin circular receptacle
Operating Environment
- Temperature: 14° to 140°F (-10° to 60°C)
- Humidity: 5% to 95% RH, non-condensing
- Altitude: 15,000ft (4,572m) max.
Storage Environment: 22° to 185°F (-30° to 85°C)
Length: 15 feet (4.57m)
Weight: 4.4 oz. (125g)
Chemical Sensing Cable End-of-Line (EOL) Terminator SpecificationsConnections: 22 AWG, 4 Conductors, Hirose 4-pin circular receptacle
Operating Environment
- Temperature: 14° to 140°F (-10° to 60°C)
- Humidity: 5% to 95% RH, non-condensing
- Altitude: 15,000ft (4,572m) max.
Storage Environment: 22° to 185°F (-30° to 85°C)
Dimensions: 1.5″L x 0.5″W (38mml x 13mmW)
Weight: 0.3 oz. (11g)
