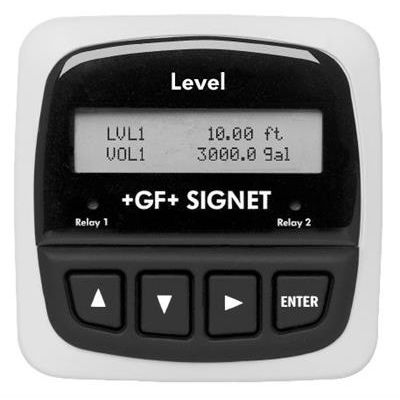

+GF+ Signet - Model 8250 ProcessPro™ -Level Transmitters
+GF+ SIGNET 8250 Level Transmitters are compatible with a variety of continuous level sensor types including Pressure, Magnetostrictive and non-contacting Ultrasonic. They are also available in field and panel mount configurations, single or dual-channel input and equipped with one 4 to 20mA output for each input channel. The unit also features two relays, plus the ability to support two additional externally mounted relays (for a total of four). Relay operation is selectable for High, Low, Window or Off, and includes fully adjustable hysteresis and trigger time delay. Automatic level-to-volume conversion allows display and control of tank level and/or volume in units such os gallons, kilograms, feet or meters. Simply enter the dimensions of the tank or vessel, and the instrument will calculate volume from the level measurement.
- Compatible with +GF+ SIGNET Pressure, Magnetostrictive and Ultrasonic Continuous Level Sensors via S3L™ input
- Single or Dual Channel Input
- Field and Panel Mount Versions
- 4 to 20mA Outputs Fully Scaleable, Reversible and Assignable to Either or Both Channels (8250-3X versions)
- Advanced Relay Control
- Supports up to 4 Relays
- Output Simulation
- Manual (up to 10 pts.) and Automatic Level-to Volume Conversion
- Display Level, Volume or Both
- Units for Level: ft., in., m, cm, %
- Units for Volume: gal., in3, lbs., I, m3, kg, %
- Specific Gravity Entry for Use with Pressure Sensors and Mass Unit Conversion
- User-selectable Averaging for Display and Output
- Continuous level and/or volume monitoring
- Local or remote display
- Fill start/stop control
- Pump protection
- Inventory management
- Storage tank monitoring
- Pump station control
- Waste sumps
- Clarifiers
- Plating lines
- Neutralization tanks
- Overflow protection
- Leak detection
