EOSModel LAS -Liquid Autosampler

SHARE

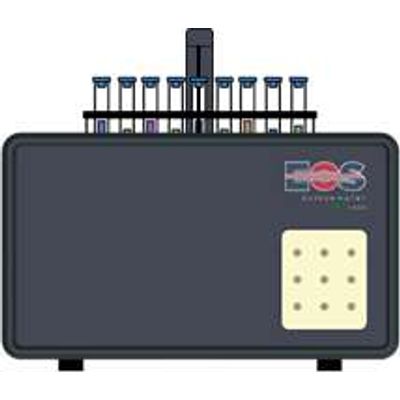

The EOS LAS™ is an autosampler compatible with the Classizer™ ONE and is designed to be used with liquid sample managers LMS™, LMA™, and LAD™. Its primary attributes include user-friendly installation and operation, with settings and sample processing manageable through the Classizer™ ONE software. The sample dish moves in such a manner that aligns the arm with the cannula for sample processing. Samples can be stirred using a magnetic stirrer to prevent particle settling before aspiration. The cannula is inserted to a programmable depth, where the sample is aspirated and transported to the Classizer™ ONE via LMS™, LMA™, or LAD™ through an inert transfer line. This system aims to increase sample throughput, standardize operations, and minimize human errors and time costs. Technical details and specifications may vary based on the system model, configuration, and sample preparation requirements.
Most popular related searches

EOS LAS™ is a autosampler compatible with Classizer™ ONE and designated to be used with liquid sample managers LMS™/LMA™/LAD™LAS™ is characterized by the ease of installation and use: settings, starting of the line, the sample processing, and the washing can be started and operated through the Classizer™ ONE software. The sample dish moves in such a way that align the arm with the cannula to the first sample to be processed. The samples may be stirred via a magnetic stirrer to prevent particle settling before the aspiration. The cannula it is then inserted at a programmable depth, where the sample is aspirated and transported to the Classizer™ ONE via LMS™/LMA™/LAD™ using an inert transfer line. EOS LAS™ is then ready to move on to the next sample!

  • Latest generation industrial electronics.
  • High reproducibility.
  • Very high chemical compatibility
  • Optimised design and flow path.
  • Customizable washing routine.
  • Reduces sample waste.

Vial size: 20mL, 50mL (customisable)
Capacity: 10, 20 vials (customisable)
Wetted surfaces: PTFE, PCTFE, PEEK, FFKM, FEP, Stainless Steel, BK7
Sampling Mode: Fully automatic
Dimensions: 26cm × 30cm × 34cm (W × H × D)
Weight: 10 Kg
Power supply: 100-240V 50Hz
Operating conditions: Temperature: 15-35°C Humidity: 20-80%
Recommended applications: LAS™ is designed to increase the throughput of the samples, standardize operations, reduce human errors and time costs. Technical details may depend on the system model, configuration, sample and sample preparation.
