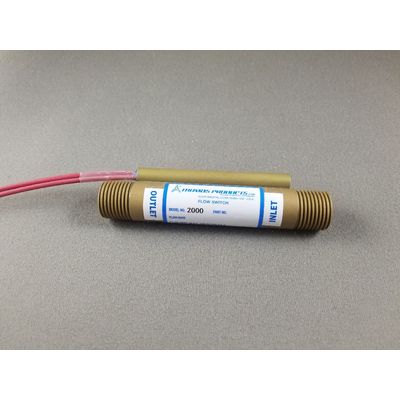

Thomas - Model 2000 Series -Liquid Flow Switch
Standard flow calibration is in water 70°F with lead wires in horizontal position. Calibrated on decreasing flow. Set point accuracy will change slightly in other than calibrated position. Also available: Leads in different lengths, cable, terminated ends, etc. Consult factory.
Most popular related searches
- High-temperature units available to 400°F. Consult factory.
- Standard flow settings are calibrated in water. Other set points in water or oil are available. Consult factory.
- Other wetted materials: Hysol epoxy.
- All SST piston for either brass or SST housings, eliminate hysol epoxy is available. Consult factory.
- Relays for higher loads are available. See accessories section for details
- Calibration: Flow stands are calibrated to the National Bureau of Standards and Thomas Products Ltd. recalibration schedule.
- Weight: 1 lbs
- Dimensions: 8 × 5 × 3 in
- Housing Material Brass, SST
- Reed Switch Logic: SPST, Red-Common, Red-NC (non-polar switch), SPST, Red-Common, Red-NO (non-polar switch)
- Flow Set Point: 0.5 GPM Decreasing Flow, 1.0 GPM Decreasing Flow, 1.5 GPM Decreasing Flow, 2.0 GPM Decreasing Flow, 2.5 GPM Decreasing Flow, 3.0 GPM Decreasing Flow
