IFE Aufbereitungstechnik GmbH

IFEMagnetic Pulley

SHARE

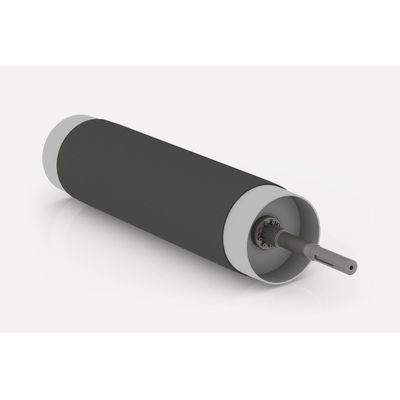

IFE-magnetic pulleys comprise of a shaft with the magnetic system built on it. Both ends of the shaft are adapted according to clients needs. These pulleys are usually installed in belt conveyors. The magnetic system induces a strong magnetic field functioning all over the perimeter. All magnetizable material is attracted and pulled to the pulley, until it is extracted from the magnetic field by the lower run of the belt.

Most popular related searches
  • high magnetic Forces
  • no additional operating and energy cost
  • integrated easily as pulley of a belt conveyor
  • can be installed as an add-on addition
  • no maintenance
  • ends of shaft made according to clients needs
  • magnets made with first-class magnetic material, either barium-ferrite or neodymium
  • magnetic field setup in radial variant
  • nominal diameter up to 1250 mm
  • nominal width up to 1800 mm
  • optionally available with rubber coating
  • ends of shaft made according to clients needs
  • Food and feed
  • Recycling and Waste
  • Wood
  • Chemicals and Plastics
  • Slag processing
  • and various other industries
