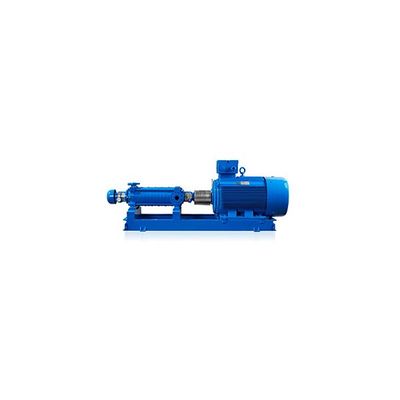

Masdaf - Model KDM -Horizontal High Pressure Multistage Centrifugal Pumps

KDM series are non-self-priming, horizontal, ring portions radially divided, multistage centrifugal pumps.

• Impeller is between bearings; it is single-entry, closed impeller and dynamically balanced.
• There is a balancing drum at discharge side to balance axial load.
• The pump and motor is fixed on the same chassis and are connected via a flexible coupling to each other.
• Suction and press nozzles can be selected in different 90° positions.
• Specially designed fans provide extra cooling to the bearings.
• Bearings lubricated by the liquid.
• Axial loads balanced with balancing drum and thus seal pressure is decreased. High efficiency has been achieved due to the low leakage flow.

• Suction Flange: DN 65 – 80
• Discharge Flange: DN 50 – 65
• Working Pressure: 90 Bar
• Speed: 2900 rpm
• Working Temperature: Up to 150 °C
• Flow Range:  0 – 100 m³/h
• Head Range: Up to 900 m

• Power plants
• Pumping clean and slightly contaminated fluids
• Boiler feed and condensate transfer
• Central heating systems
• Water supply system
• High-rise buildings and industry booster sets
• Water purification
• Industrial washing system
• Sanitary and cleaning facilities
• Industrial applications and utilities
• Water delivery services
• Shipbuilding, Mining, Filter Units
