MCZ - Calibration System for Sampling Probes and Sampling Piping

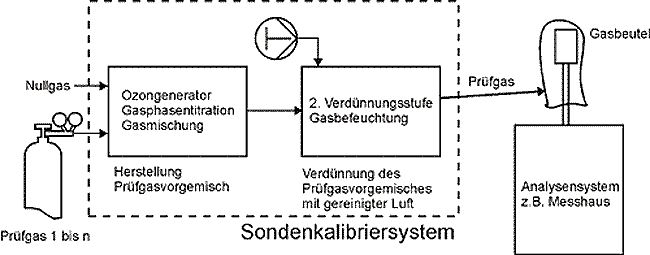

A gas bag is used to add the known span gas concentration at the sampling of the measuring station. The analysis system can be calibrated to compensate for the losses due to sampling.

The modular calibration system MK10 is used to compound span gas. The use of a span gas dampener is recommended to approximate the span gas with the real conditions of a sampling with ambient air.

• Calibration system to check the measures gas path from the sampling probe to the analyzers
• Eliminates poor results due to the correction value for sampling
• Comparable measurement results from different measuring stations due to the utilization of a transfer standard

Note

Additional data available upon request.
