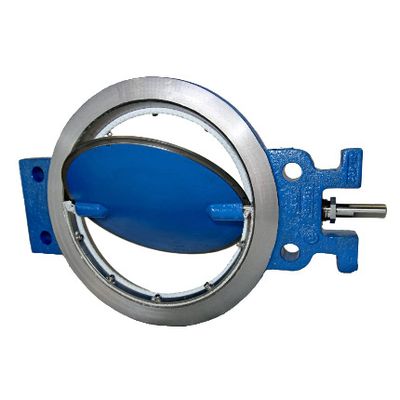

PDC - Model 01 Series -Medium Duty Butterfly Damper Valve
The PDC “Medium Duty” series butterfly valve is available in sizes from 2″ thru 24″ in a combination of materials and optional features suitable for most mid-range differential pressures and service conditions.
Most popular related searches
butterfly damper
butterfly valve
gas recovery system
mining equipment
environmental system
gas recovery
damper
blower compressor
environmental equipment
furnace
- Size: 2" thru 14", 16" thru 24"
- Operating Temperature: To 450°F with standard materials. To 900°F with optional materials.
- Inboard bushings of graphited bronze for long life, non-freezing, low torque characteristics.
- Close tolerance machining for minimal leakage and dependable flow characteristics.
- Adjustable packing-Graphited TEFLON ® Braid. Valves can be repacked without removal from line.
- Rugged mounting pads drilled and tapped for ease of installing actuating equipment and accessories.
- Flatted, keywayed or hexed ends on shafts are available to facilitate factory or field mounting of all types of actuating equipment.
- Lightweight, solid ring, wafer design for ease of installation. Four holes to insure proper alignment without transfer of pipe stresses to the valve body.
- Blower Equipment
- Compressor Equipment
- Boiler Equipment
- Environmental Systems
- V.A.C
- Industrial Process Furnaces
- Oil Gas/Refining
- Power Generation/Co-Generation
- Water & Sewage
- Stationary Engines
- Chemical Equipment
- Mining Equipment
- Gas Recovery Systems
- Size Range:2" thru 14", 16" thru 24"
- Temperature:To 450°F with standard materials. To 900°F with optional materials.
- Pressure Rating:Varies with size. See Econotrol Series 09 Brochure
- Shutoff Rating:ANSI Class II, Class III available with optional seats
- Body Style: Wafer
