GEA Filtration - Model U -Membrane Filtration Pilot Plant

The pilot plant`s standard configuration allows for testing with spiral polymeric membranes. It can also be equipped with other membrane configurations including ceramic, and tubular. The plant is specially designed for continuous or semi-automatic mode of operation to simulate a multi-stage production plant. The plant can also be run in batch mode, semi-batch mode, or feed and bleed mode.

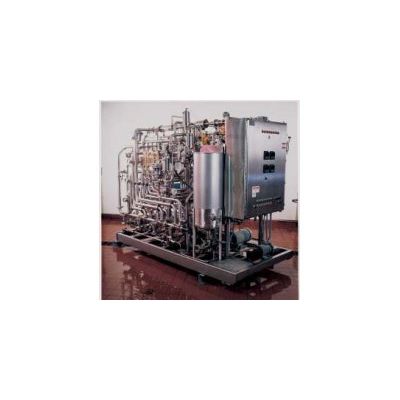

The Model U membrane filtration pilot plant is skid mounted and will be delivered with all the components required for quick installation and easy operation, including an operating manual with data sheet templates.

• Standard Features
• Six, sanitary, spiral membrane housings
• one membrane element per housing
• 3.8" diameter, sanitary design elements
• 30 gallon tank
• Control loops
• feed flow/pressure
• temperature
• tank level
• concentrate ratio control
• Motor starters
• variable frequency drive for feed pump
• on/off starter for five pumps (5 Hp)
• Flow indicators
• three, permeate rotameters
• one, feed magmeter
• one, concentrate magmeter
• Pressure and temperature gauges
• Five heat exchangers (1m 2)
• Pressure relif valve
• 316L stainless steel construction
• Skid mounted

• Membrane Area Spiral:  4 to 42 m2
• Permeate Capacity Spiral:  20-200 gallons/hour
• Pressure:  upto 600 psig
• Temperature:  up to 200° F

• Power:  230/460V, 3 phase, 60Hz
• Electric Service:  50 amps / 460 V
• Plant Air:  80 psig, oil-free
• Line Size:  3/8"
• Cooling Water:  10 gpm, 60° F
• Steam:  500 pph, 50 psi
• CIP Water:  20-30 gpm
• Seal Water:  2-5 gpm

• 1,000 psig capability
• Industrial, spiral membrane housings
• Tubular polymeric membrane housings
• Other membrane configurations
• Pretreatment equipment
• screens and depth filters
• chemical feed systems
• Diafiltration
• Add 4th stage
