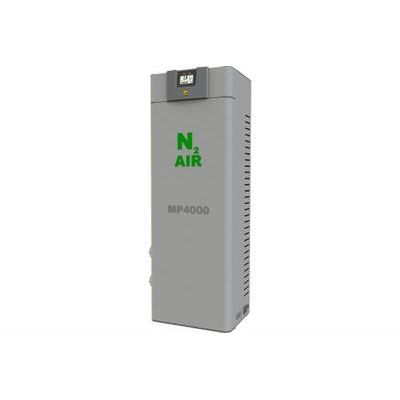

NitroGen - Model Series NG Castore MP 4000 -Membrane Nitrogen Generators
FromLNI Swissgas
The NitroGen series CASTORE MP 4000 are Membrane Nitrogen Generators. They are engineered to transform standard compressed air into a safe and regulated supply of Nitrogen with a purity up to 99.9%. An optional channel can provide up to 30 L/min of compressed, dry and regulated air. The CASTORE MP 4000 with it’s dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for Agilent MP AES 4xxx series. It can be used for the evaporation of solvents in samples being analysed.
Most popular related searches
membrane nitrogen generator
nitrogen generator
nitrogen and air generator
air intake
internal tanking
solvent evaporator
compressed air
aromatic compound
LCMS nitrogen
LC-MS
- Nitrogen + Air generator for Agilent MP AES 4xxx
- Compatible with all LCMS
- Dual Nitrogen and Air generator
- Low noise with no mechanical moving parts
- Low maintenance
- Generates nitrogen on demand
- Designed to run 24 hours a day
- Agilent MP AES 4xxxx
- LCMS
- Solvent evaporation
Model: NG CASTORE MP 4000
N2 outlet
- Flow rate (Max): 30 l/min
- Outlet pressure (min / Max): 2.0 bars / Inlet pressure – 1.0 bar
- Nitrogen purity (Inlet Pressure >= 8 bar):
- > 99.9 % @ 25 l/min
- > 99.7 % @ 30 l/min
- Internal tank capacity: 10 L
Dry Air outlet
- Flow rate (Max): 40 l/min
- Outlet pressure: Inlet pres. – 1.0bar
- Dew point: < -20°C (-4°F)
- Internal tank capacity: 10 l
Air inlet
- Air inlet requirement: Particulate: <1 micron
- Dewpoint: < 5°C (41°F)
- Oil: <0.01 mg/m³
- Flow rate (Max): 170 l/min
- Supply pressure (min / Max): 7 bars / 10bars
- Temperature (min / Max): 1°C (34°F); 45°C (113°F)
General data
- Net weight: <30 kg
- Dimensions (W x D x H) mm: 480 x 350 x 1200
Connections
- N2 outlet port: ¼” BSPP female
- Dry Air outlet port: ¼” BSPP female
- Inlet port: ¼” BSPP female
- Drain port: ¼” BSPP female
Operating/storage conditions
- Temperature: 5-35°C (41-95°F)
- Humidity (max, non condensing): 80% at 25°C (77°F)
- Noise: <25dB(A)
- IP rating: IP20
- Pollution degree rating: 2 (with no aromatic compounds)
- Altitude: < 2000m
