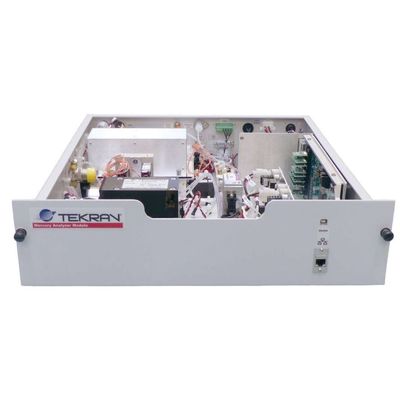

Tekran - Model 3400-ANLZ -Mercury Vapor Analyzer System
The Tekran® Model 3400-ANLZ mercury vapor analyzer is built specifically for measurement of stack gases and other elevated mercury source gases. The 3400-ANLZ is the cornerstone of Tekran® Hg CEM Systems, which have been installed at over 200 sites in the U.S. The 3400-ANLZ has proven accurate, stable, and reliable under the most remote and rugged conditions. Designed for years of continuous use, Tekran’s patented pure gold cartridge is immune to memory effects and will eliminate the host of interferences that plague direct AA or AF analyzers.
The Tekran® 3400 Analyzer (3400-ANLZ) integrates the mercury measurement, system communication and control into one easy to maintain module. The 3400-ANLZ has the same design and operation as the widely successful 2537Xi and 2537S models. For continuous long-term, unattended analysis of total fluegas mercury with unmatched accuracy, sensitivity, and reliability, the 3400-ANLZ is the preferred choice for research, process and compliance Hg emission monitoring. The industrial 2537 platform has performed exceptionally at hundreds of emission sources, and the ambient air 2537 platform has been installed at both Polar Regions, on ocean research vessels, and hundreds of locations in between.
Electronics Platform
- USB communications port with terminal interface
- Embedded microprocessor for autonomous control
- Simplified design for integration into 3400 HgCEM monitoring system
Detector
- High sensitivity CVAFS detector with superior stability
- Determination of mercury levels in ng/m3 - µg/m3 range
- Upgraded lamp stabilizer and detector electronics
- Easy cuvette removal via convenient fitting interface
- Digital PMT control
Cartridge / Valve Assembly
- New valve assembly with low dead volume
- Constant power heater control insures consistent temp over heater life
- Faster cool down time with independent high-velocity channelled fans
Physical Layout
- Reduced height from 4U (7”) to 3U (5.25”)
- Improved component accessibility for routine maintenance

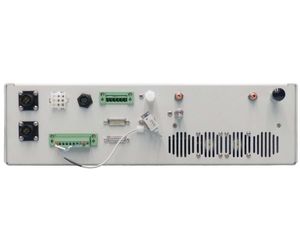

- 24 V Power Ports (2)
- Regulator Adjustment (1)
- RS-232 Serial Output (1)
- Dilution MFC Input (1)
- Cooling Fan Ports (2)
- Analog Chart Outputs (2)
- RS-485 Ports (2)
- Digital Inputs (1)
- Pressure Sensor Display (1)
- Sample & Gas Inputs/Outputs (4)
- Analyte: TGM (Total Gaseous Mercury) with speciation upgrades to the 3400-COND Sample Conditioner in a 3400 system.
- Principle: Gold pre-concentration with atomic fluorescence detection.
- Sensitivity: < 0.1 ng/m3 (5 min samples)
- Sampling Cycle: 90 s – 60 min (90 s - 5 min recommended)
- Sampling: Continuous (no data stream gaps)
- Outputs: See above
- Sample Flow: 0.2 – 2.0 L/m
- Flow Totalization: Precision mass flow controller (MFC)
- Carrier Gas: Argon
- Consumption: ~300 L/day (full size tank lasts 5 to 6 weeks)
- Argon Flow Setpoints:
- Carrier Flow – 100mL/min
- Cartridge Flush – 100mL/min
- Detector Purge – 10mL/min
- Calibration: System calibration using internal mercury source.
- Physical: Self-contained, 19” rack mountable (3U height)
