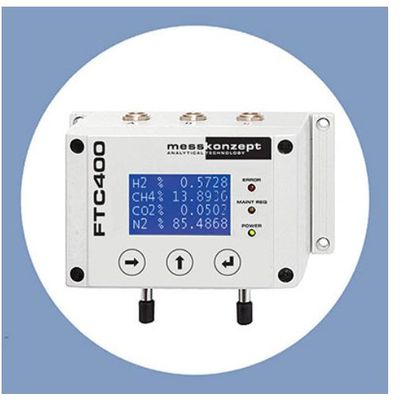

Messkonzept - Model FTC400 -Gas Analyzer for Process Engineering
The FTC400 compact gas analyser offers precise and reliable process monitoring based on the principle of thermal conductivity plus integrated selective infrared measurement of CO2, CH4, CO, H2O and other IR-active gases. In addition to (quasi-) binary gas mixtures of, inter alia, H2, He, Ne, Ar, N2, Kr, O2, CH4, CO2, NH3 and SF6, complex gas mixtures can also be analysed online by means of cross-sensitivity compensation. H2 in natural gas or biogas, for example, can be accurately determined. Of course, the concentrations of the IR-active gases can also be displayed and read out. The FTC400 is designed in enclosure IP65 and is specified for absolute sample gas pressures of up to 2 bar. A version for higher sample gas pressures is available on request. The FTC series operates without reference gases, even at the smallest measuring ranges of e.g. 0 vol.% – 0.5 vol.% of H2 in N2.
General:
- Measurement process Thermal conductivity, 3xIR, measurement gas pressure
- Sampling Analyzer extractive
- Connection 6mm pipe
- Dimensions (WxHxD in mm) 145x80x85
- Protection class IP 65
- Pressure-proof to 2 bar absolute
- Power supply 18V to 36V DC / 700mA
- Ambient temperature range -20°C to 50°C
- Weight to 1800g
- T90 time at 60l/h <1sec
Communication:
- RS232 Yes
- Current output 1x, 0/4-20 mA
- Voltage output 2x, 0-10V
- Display Yes
- Relays 3x
- Service program SetApp 2.0 —
- Calibration on site Yes
Options
- Flow measurement —
- Flow monitor —
- Infrared measurement Yes
- Multi Gas Mode Yes
- Protection against corrosion limited
- Protection against condensate and dust limited
- Suitable for inflammable gases Yes
- Moisture measurement —
- Cross-sensitivity compensation Yes, integrated
Specifications gas analysis
- Noise < 1% of smallest range
- Drift at zero point per week < 2% of smallest range
- Repeatability < 1% of smallest range
- Non-linearity < 1% of range
- Measuring error with ambient temperature change per 10°K < 1% of smallest range
- Flow influence between 60l/h and 90l/h per 10l/h < 1% of smallest range
- Fault with measurement gas change (Pabs > 800 hPa) per 10 hPa < 1% of smallest range
