Metrohm - Model 2060 - Process Analyzer
The 2060 Process analyzer enables customized online monitoring of industrial processes with multiple parameters and streams. The 2060 Process Analyzer is the most versatile analyzer in the Metrohm Process Analytics product portfolio. With a variety of techniques, the analyzer enables 24/7 online monitoring of critical chemical parameters in industrial processes and wastewater streams.

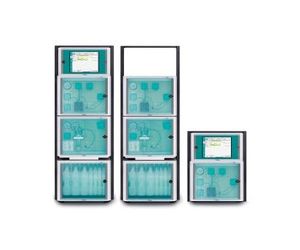

Modular flexibility to up to four cabinets
Implementation of multiple analysis techniques to cover countless applications
IP66/NEMA 4 enclosure for harsh environment
Intuitive software designed to efficiently program and control the analyzer with various analysis applications (e.g. tiamo, ... )
This new flexible layout allows numerous combinations of multiple analysis modules for multiparameter measurements on multiple streams.
Metrohm Process analyzers are well known for its modular configuration concept, we have now taken that flexibility one step further. The Metrohm 2060 Process Analyzer not only offers modularity within one cabinet, but also can contain up to four cabinets to create one single analyzer platform. The multi cabinet configuration allows maximum flexibility to solve complex process monitoring challenges that contribute to sophisticated plant automation.
Designed to efficiently program and control the analyzer.

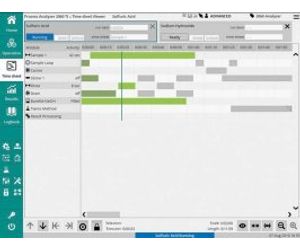

Using so-called time programming sheets the analyzer program execution is displayed in a clear graphical timeline representation. Alarms can be programmed to monitor the current status of the analyzer and the process and can be communicated using Modbus or discrete I/O.

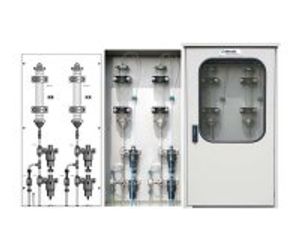

Metrohm Process Analytics can engineer and supply virtually any “unit operation” for sample preconditioning and can provide a complete working solution for most industrial processes.
Besides the chemical analysis, sample preparation, preconditioning and location of the analyzer are deciding factors for the success of online and atline analysis. We can provide a full solution for almost any application; an analyzer in combination with sample preparation or even a complete turnkey package with a shelter, piping, wiring, and interfacing. This allows for a seamless startup and integration of the analyzer on-site.
World-leading companies rely on our robust process analyzers across many industries. Applications are numerous and the 2060 Process Analyzer is the best solution to solve the most typical and challenging applications:
