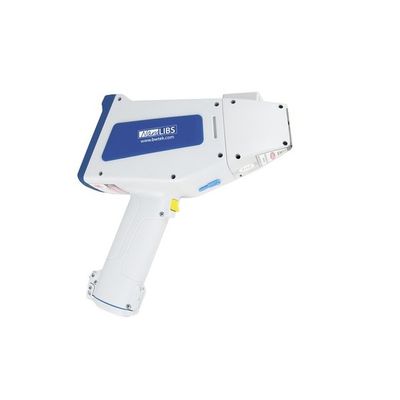

Metrohm NanoLIBS - Model BWT-840001130 -Handheld LIBS Spectrometer
The NanoLIBS® LIBS analyzer is a state-of-the-art, handheld instrument for laser-induced breakdown spectroscopy used in rapid identification of solid materials based on elemental analysis. The NanoLIBS provides considerable time savings in materials identification and confirmation, improving compliance with raw material testing directives while at the same time increasing productivity. The NanoLIBS is lightweight with a high-brightness touch screen for rapid material identification, giving results in seconds. NanoLIBS ID data management stores data in a secure database on a PC and/or server, enabling e-signatures on reports, report generation, as well as methods and account management.
The NanoLIBS uses the minimally invasive and 21 CFR 1040.10-compliant LIBS technology to create a spectrum with elemental information, thus making it ideal for identifying monatomic ionic salts, such as KCl and NaCl, without requiring reagents or the lengthy sample preparation of destructive laboratory methods. With its intuitive user interface and advanced algorithms, it provides users a quick and reliable unambiguous pass/fail result using its 21CFR Part 11 compliant software.
- AC Adapter: Output: DC 12 V, 2 A minimum
- Barcode Reader: Linear and 2D standards
- Battery: Rechargeable Li-ion battery, > 4 hrs operation
- Connectivity: Wi-Fi, Ethernet
- Data Formats: .txt, .csv, .spc
- Display: 3.7” color touch screen; glove-operable
- Excitation Wavelength (nm): 1000–1100 nm
- Laser Safety Class: 3B
- Operating Temperature (°C): 0 – 40°C
- Size: 265 mm x 100 mm x 304 mm
- Software: NanoLIBS OS (embedded), NanoLIBS ID (PC)
- Spectral Range: 180–800 nm
- Storage Temperature: -30°C – +60°C
- Weight: 1.8 kg
