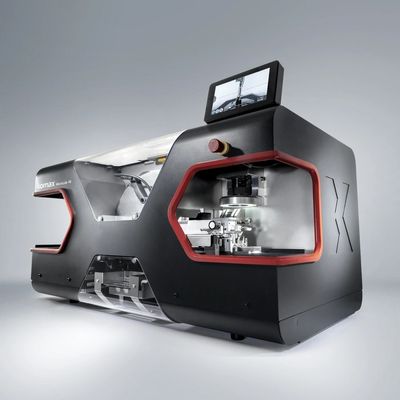

Komax MicroLab - Model 45 -Micrograph Laboratory Device

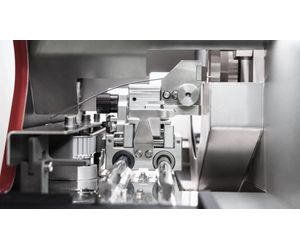

The MicroLab 45 is the best micrograph labratory for high level quality checks. With the fully automatic transport system, it quickly meassures and evaluates micrograph pictures. MicroLab 45 is designed for fast micrograph preparation of specimens up to a maximum diameter of 6 mm. The fully automatic transport system and the proven technology enable a short processing time. Parallel processes allow continuous micrograph preparation. Samples can be clamped quickly and the cut surface can be determined easily and accurately. Without reclamping, the MicroLab 45 cuts and grinds the samples independently.

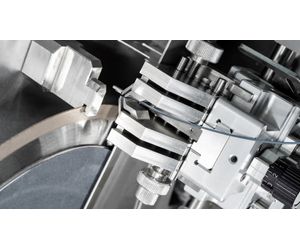

Diamond cutting disk
The MicroLab 45 ensures a processing range from 0.08 - 16 mm². The diamond cutting wheel also leads to an improved quality of micrograph pictures.

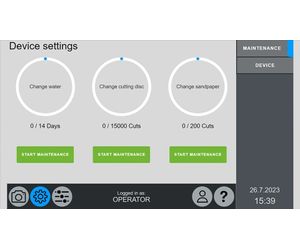

The modern and intuitive user interface regarding the Komax design includes a maintenance trainer and allows an userfriendly usage of the machine.
Thanks to wet processing a high lifetime of wear parts is ensured. Up to 10.000 cuts with the cutting disc and up to 500 grinds with the sandpaper are possible.

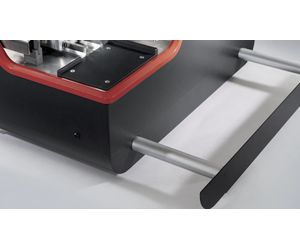

The MicroLab 45 has integrated handels for an easy set up of the device. It can be placed right where you need it to ensure the quality in your production process.

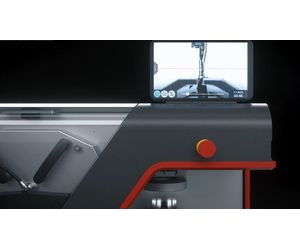

Thanks to a live camera picture the cutting and grinding position of the sample can easily be detected.
MicroLab 45
Metric
- Processing area (max. terminal Ø) max.: 6 mm
- Processing area (max. terminal Ø) min.: 0.5 mm
- Dimensions/height: 637 mm
- Dimensions/length: 10021 mm
- Dimensions/width: 640 mm
- Weight: ~ 117 kg
- Temperature operation: 15-40 °C
- Conductor material: copper, aluminum and steel
- Electrical connection: 110 - 240 V AC, 50 Hz / 60 Hz
- Application range: Commercially available crimp types (except for potted crimp terminals)
Imperial
- Processing area (max. terminal Ø) max.: 0.24 in
- Processing area (max. terminal Ø) min.: 0.02 in
- Dimensions/height: 25 in
- Dimensions/length: 394.5 in
- Dimensions/width: 25.2 in
- Weight: ~ 253 lbs
- Temperature operation: 59 - 104 °F
- Conductor material: copper, aluminum and steel
- Electrical connection: 110 - 240 V AC, 50 Hz / 60 Hz
- Application range: Commercially available crimp types (except for potted crimp terminals)
