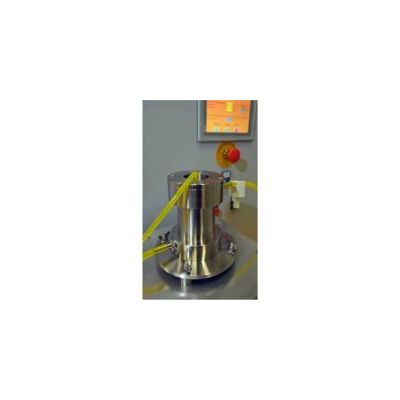

Micropore - Model LTS-1 -Monosized Droplet Generator System
The Micropore LTS-1 is designed for Laboratory use and comes in a standard configuration. It is the first step in scale-up from proof of principle and formulation development carried out on the Micropore LDC-1 towards a robust manufacturing process. It has a capacity of up to 10 kg/hr of dispersed phase. Monosized droplets – with resulting yield improvements and reduced waste. Low shear – with resulting preservation of sensitive materials. Ideal development tool for continuous manufacturing. Operational stability under different flow rates. Data shown from membrane area of 50cm2. Dispersed phase flow rate up to 10 kg/hr.
Flow Cell
- Holdup volumes: Continuous phase 80ml, disperse phase 15ml (excluding tubing).
- Product wetted parts: 316 stainless steel base material, PTFE or UHMWPE seals depending on client requirements.
Supporting Framework
- Bench top mounted; Aluminium extrusion.
- Dimensions: Approx. 500 x 500 x 500 mm.
Coupling
- One piece steel direct coupled shaft with keyway fixing.
- 38 mm x 32 mm ID; 60 mm OD, 90 mm L.
Motor
- Brushless AC 1.8 kW servo motor.
- Supply: single phase.
- Fan cooling.
- All supplied to IP65.
Power Supply
- 380-480 VAC, 50/60 Hz to control panel.
- Specified pump drives: 230 VAC, 50 Hz.
Membrane modules
- A hydrophilic or hydrophobic membrane module with 200 micron pitch is included. Pore size is at the client’s choice.
Injected Phase Pump
- Magnetically coupled gear pump.
- Viscosity range: 0.2 to 1500 centipoise.
- Max flow rate: 0.46 litres/minute at 5000 rpm.
- Maximum fluid temperature: 121°C.
- Wetted parts: 316 stainless steel base material, PEEK gears, PTFE seals.
Continuous Phase Pump
- Magnetically coupled gear pump.
- Viscosity range: 0.2 to 1500 centipoise.
- Max flow rate: 1.6 litres/minute at 5000 rpm.
- Maximum fluid temperature: 121°C.
- Wetted parts: 316 stainless steel base material, PEEK gears, PTFE seals.
Control Panel
- Stop, start & emergency stop buttons.
- Door mounted HMI with operator input on oscillation displacement, frequency and membrane outer diameter.
