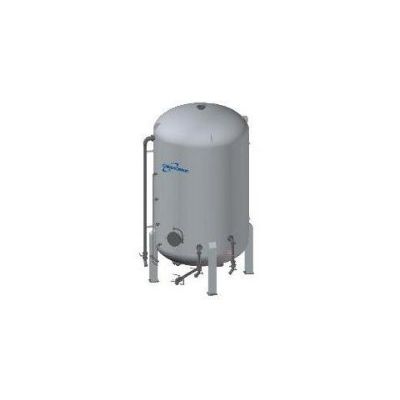

Model 14 - Modular Carbon Adsorption Vessel
From Liquid Phase Adsorption Equipment
The Calgon Carbon MODEL 14 is an adsorption vessel designed for the removal of dissolved organic contaminants, including disinfection byproducts (DBP) or natural organic matter (NOM) from liquids using granular activated carbon (GAC). The vessel is sized to hold 60,000 pounds of GAC which provides the additional contact time required to remove either compounds at low concentrations or poorly adsorbing compounds. The standard design is a single vessel concept where a number of MODEL 14 vessels are configured for parallel operation. As an option, two vessels can be combined with a centralized pipe manifold to allow for series operation. This flexibility of configurations allows the engineer to select the alternative that best meets the requirements of the site and treatment objectives.
The MODEL 14 vessel is provided with one (1) GAC f...
The MODEL 14 vessel is provided with one (1) GAC fill line and three (3) GAC discharge lines. The multiple discharge lines are positioned to each extract 20,000 pounds of spent carbon. This feature minimizes the time required for GAC exchanges by eliminating the guesswork of loading the spent to the trailers. The two (2) side mounted discharge nozzles are provided with stainless steel inserts that have two functions. The stainless nozzles project into the vessel and protect the lining during carbon exchange. Also, GAC can vary in density depending on starting material and activity. The discharge nozzle inserts can be rotated 360 degrees to accommodate the differing densities. If the nozzle insert wears away it is designed to be easily replaced. The design has the benefit of Calgon Carbon's extensive expertise and has been proven in numerous applications. The engineering package can be provided quickly and the system expedited through Calgon Carbon's production capabilities.
The MODEL 14 is provided with three (3) in-bed sample assemblies which allows the operator to monitor the progress of the adsorbent as it flows through the bed.
All valves and accessories are located at low elevations for ease of operation and maintenance.
The MODEL 14 is designed with a unique internal cone under-drain that provides for the efficient collection of treated water and the distribution of backwash water. Also, the internal cone ensures efficient and complete discharge of spent carbon from the adsorber without the need to open the manway to manually wash out the residual spent carbon.
The MODEL 14 system is designed for use with Calgon Carbon's closed loop carbon exchange service. Using specially designed carbon transport trailers, the spent carbon can be removed from the adsorber via a pressurized carbon-water slurry; and fresh carbon refilled in the same manner. This closed loop transfer is accomplished without exposure of personnel to either spent or fresh carbon. Calgon Carbon can also manage the disposition of the spent carbon. It can be returned to Calgon Carbon for reactivation; avoiding the need for the site to arrange for disposal.
Carbon Adsorbers
- Carbon Steel ASME code pressure vessels
- Internal vinyl ester lining (nominal 35 to 45 mil dft where GAC contacts steel) for potable water and most liquid applications
- Polypropylene slotted nozzles for water collection and backwash distribution
Standard Adsorption System Piping
- Full bore stainless steel ball valves for GAC fill and discharge
- PPL lined steel pipe for GAC discharge
- 4½ Schedule 40 Carbon Steel Pipe
- Three (3) In-Bed Sample Collection Probes
System External Coating
- High solids epoxy paint system
Dimensions and Field Conditions
Dimensions and Field Conditions
Adsorber Vessel Diameter : 14'-0' (4,267 mm)
Influent and Effliuent Connections : 10'
Process Pipe Connection : 150# ANSI flange
Utility Water Connection : 3/4' hose connection
Utility Air Connection : 3/4' hose connection
Carbon Hose Connection : 4' quick disconnect type
Seismic Design : Meet IBC 2006, Ss=0.50 Site Class D,l=l.25
Adsorber Maintenance Access : 20' round flanged, man-way, 14' x 18', man-way below cone
Adsorber Shipping Weight : 40,500 lbs. empty (18,410 kg)
System Operating Weight : 281,000 lbs. (127,730 kg)
Operating Conditions
Carbon per Adsorber : 60.00C lbs. (27,240 kg)
Pressure Rating : 125 psig (862 kPa)@140°F
Pressure Relief : Provided by the Customer
Temperature Rating : 140°F maximum (60°C)
Backwash Rate : 30% Expansion, BW Rate 2,600 gpm, 8x30 mesh GAC at 60°F
Carbon Transfer : Air pressure slurry transfer
Utility Air : 100scfmat30psig (reduce to 15 psig for trailer)
Utility Water : 200 gpm at 30 psig
Freeze Protection : None provided; enclosure or protection recommended
