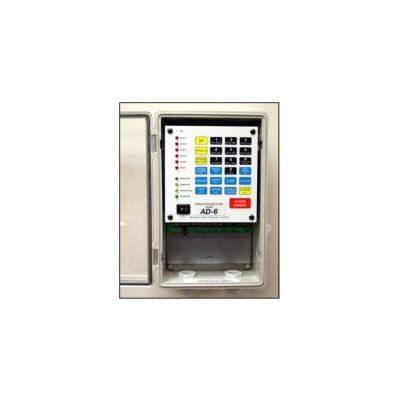

Model AD-6 -Auto-Dialer

Applications include private, commercial, institutional and industrial situations - providing a warning, especially at night, that an emergency situation exists, and allowing the called party to take immediate action to prevent or minimize damage or financial loss.

The AD-6 Auto-Dialer is compatible with a number of Water Alert combinations and also standard alarm devices which provide contact opening or closure. The remote devices are connected to the AD-6 by means of low voltage pairs of wire. Three individual inputs are available to monitor groups of contact operating devices. As example, the #1 input may be used to monitor a group of Water Alerts or Dorlen Remote Monitor, #2 input standard intrusion devices (normally closed contacts open) and #3 fire-detecting devices (normally open contacts close). Alternatively, three different zones of Water Alert groups may be used to activate the three inputs for dialer operation dedicated exclusively to water leakage detection. High and low temperature limits can also be programmed into the AD-6 (single temperature sensor included).

Upon activation of any of the three monitored inputs, the AD-6 will locally announce the Alert Condition for 30 seconds. If the "Alarm Cancel" switch is not pressed (i.e.; personnel are not present) the AD-6 will commence the dial-out, calling each of eight numbers sequentially. The first party answering the dial-out acknowledges receipt of the Alert Condition message by entering an acknowledgment code. This terminates the dial-out for this condition. The AD-6 will call continuously in the above fashion waiting one minute between each number dialed until acknowledged.

• Simple Installation
• Connect alarm devices to marked AD-6 internal terminal strip.
• Plug AD-6 UL Listed adaptor into 120VAC wall outlet.
• Open door and program the phone numbers to be called via the small internal key pad.
• Close door and plug AD-6 miniature plug into existing RJ-11 telephone jack and verify operation per instructions.
• May be used directly with Dorlen Water Alert models SS-4, SS-5, VR-4 or any Dorlen remote monitor, Series 2100 or Series 2000.
• Dialer announces both locally and over the telephone line which "Alert Condition" is activated, i.e. #1, #2 or #3 ...Will also dial out if a temperature limit is reached, AC power is lost (after 5 minutes delay) or if battery is low. Works with rotary or touch tone service.
• Dialer may be called from any off-premise location. The dialer will answer and state status of the three Alert Conditions, temperature existing at dialer, AC power (on or off) and battery condition (OK or low).
• Easily programmed using internal keyboard. Tamper resistant ... cannot change dial-out phone numbers with password protection if desired.
• Rechargeable back-up battery included. Backs up dialer for 15 hours should AC line fail. Upon AC power return, battery automatically recharges.
• Protected against high electrical noise ambient (heavy electrical machinery, etc.)
• Rugged, attractive "Wall Mount" enclosure, 7.25" W x 4.5" D x 11.25" H. Weight: 8 lbs. UL Listed line cord adaptor - FCC approved.
• Complete instructions furnished. The AD-6 comes with a 5 Year Limited Warranty.
