Model CUP-CEP -Multistage Pump
FromSPXFLOW
The ClydeUnion Pumps Condensate Extraction Pump (CUP-CEP) is a vertically suspended mixed flow bowl pump range designed specifically for the requirements of the power generation industry. The pumps can be configured with either above or below floor suction to suit the specific design considerations of the plant. Additionally, the full range of pumps can be provided with either a single or double suction inlet stage to closely match your site NPSH, thereby optimising the solution provided. Designed for both the 50 and 60Hz markets, these pumps are suitable for a range of 4 and 6 pole duties and pressures.
Most popular related searches
multistage pump
condensate pump
condensate pumping
industrial pump
vertical pump
pipe coupling
pipe sealing
suction pump
coupling sealing

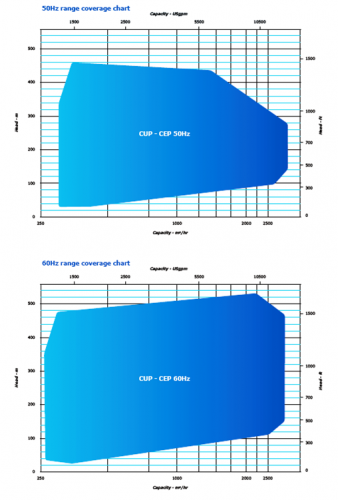

- Capacity: up to 3,000m3/hr / 13,200 gpm
- Delivery head: up to 450 m / 1,480 feet
- Temperature: up to 85 oC/ 185 oF
- Speeds: up to 1,800 rpm
- Flange drilling: BS or ANSI
- Condensate extraction
- Heater drains
- Canister + seal venting

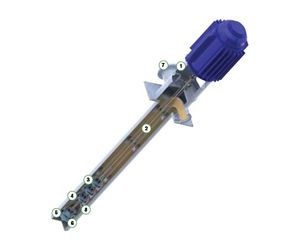

- Common seal and canister vent connection. Simplified pipe arrangement
- Lineshaft coupling
- Flangeless coupling secured over the shaft ends and located via keys over the shaft
- Standard wear ring fitment to pump end
- Optimum efficiency can be maintained by replacing bowl wear ring if required
- Hydraulic design
- Flexible impeller and bowl combinations for optimised range coverage and efficient hydraulic performance
- Optimised suction performance
- Available as single entry or double entry depending on NPSH
- Centralising webs
- Standard across full range. Guides pump into the central position providing ease of assembly
- Suction nozzle
- Above or below floor suction options. Located in headpeice or canister
- Sleeved impeller retention
- Impellers are retained by sleeves and positively secured by a locking nut mechanism. Impellers can be removed more easily at overhaul
