Model SKB 6, SKB 9 -Packaged Submersible Pump
FromHOMA Pumps

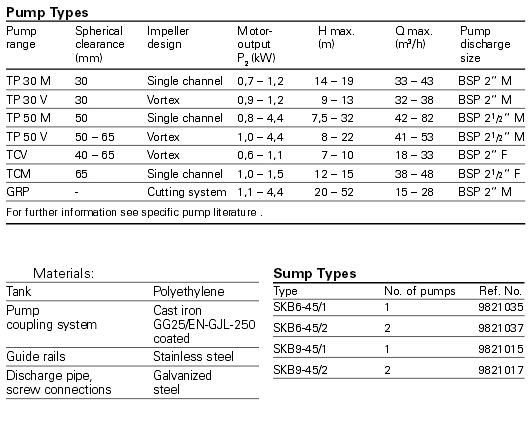

SKB 6 and SKB 9 sumps are pre-assem-bled submersible pump stations, each with an anti-flotation collection sump for the drainage of buildings from below the sewer level. With the minimum of civil work and installation time it is installed, in open ground, outside the building. Installing the SKB 6 or SKB 9 is an effective and economical solution for various waste-water and sewage disposal situations. Both pump stations can be supplied with either HOMA submersible series Barracuda GRP sewage pumps with cutting system, or series TP and series TCV/TCM waste-water pumps. For installation according to DIN EN 124 with InaH Haccpc
Most popular related searches
submersible pump
submersible pump station
ball check valve
pump station
gate valve
sewage system
sewage pump
sewage disposal
discharge pipe
cutting system
The collection sumps comprises:
- Tank: compact polyethylene tank with anti-flotation design. SKB 6 with 3, SKB 9 with 5 tank connections DN 100/ DN 150 inlets including combined cable duct/ air vent and 1 for DN 200 inlet. Discharge pipe outlet. Frame for height support ring or access cover.
- Pump Discharge Equipment: Auto-coupling system for 1 or 2 pumps with double guide rails (for pump-coupling flange see Accessories"). Galvanized discharge with screw connections. One or two soft-sealing ball check valves, gate valve. Discharge flush-cleaning connection with Storz-quick coupling. Threaded tank discharge connection BSP 11/2" M.
