HOMA Pumps products

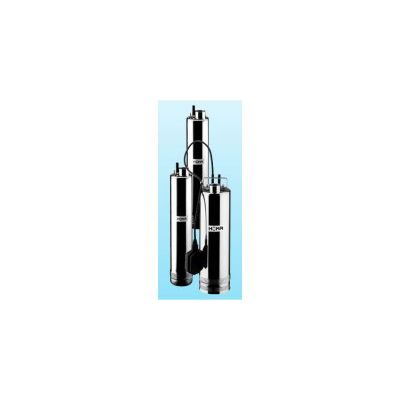

HO MA high-pressure submersible pumps are suitable for pumping clear water with high pressure, even from boreholes or narrow wells. They are used for domestic water supply, irrigation, garden watering from cisterns or similiar, in fountain displays, watering place, heat pumps, ground water drainage and so on. In combination with the electronic control panel HPS 2 or with a pressure tank, pressure switch and an electrical control panel the pumps can operate automatically (see accessories). Installation: The pumps operate in vertical or horizontal psoition. For vertical operation in a well the pump must be suspended on a rope. Pumped liquid: Clearwater. Max. teperature of the liquid: 35°C. Operation: permanent (S1)

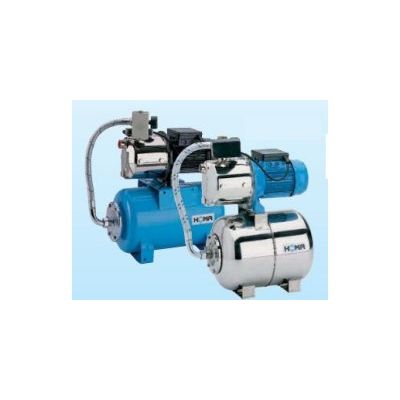

HOMA pressure booster units are the ideal solution for water supply from wells, collection tanks, ponds etc. High performance, silent operation, easy installation, and fully automatic operation of the pump by just opening the tap are the main advantages of all HOMA booster units. Series HWE: Pump with pressure switch for automatic operation and diaphragm tank to avoid pump operation at small water quantity consumption. Series HCE: Pump with electronic pump control HPS 1. The HPS 1 operates the pump depending on water pressure and flow, including a dry running protection, which stops the pump at lack of water to prevent damages from overheating. Pumped liquid: Clear water. Max. liquid temperature: 35°C. Operation: Permanant (S1).

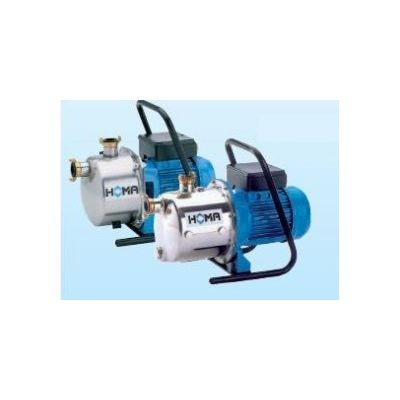

HOMA self priming centrifugal pumps are the ideal solution for many applications in house and garden. High performance, silent operation and low weight easy handling are the main advantages of these units. By installation of the automatic pump control HPS 2  (see HOMA accessory program) on the discharge of the electric motor driven pumps, the pumps are able to operate as fully automatic pressure booster units.
Pumped liquid: Clearwater. Max. liquid temperature: 35°C. Operation: Permanant (S1).

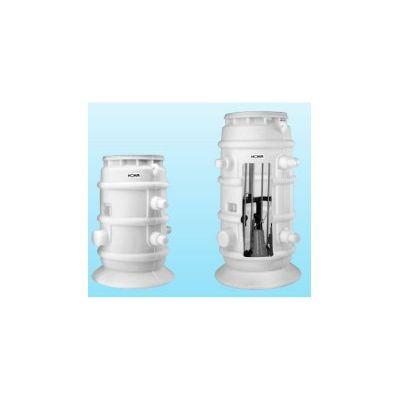

SKB 6 and SKB 9 sumps are pre-assem-bled submersible pump stations, each with an anti-flotation collection sump for the drainage of buildings from below the sewer level. With the minimum of civil work and installation time it is installed, in open ground, outside the building. Installing the SKB 6 or SKB 9 is an effective and economical solution for various waste-water and sewage disposal situations. Both pump stations can be supplied with either HOMA submersible series Barracuda GRP sewage pumps with cutting system, or series TP and series TCV/TCM waste-water pumps. For installation according to DIN EN 124 with InaH Haccpc

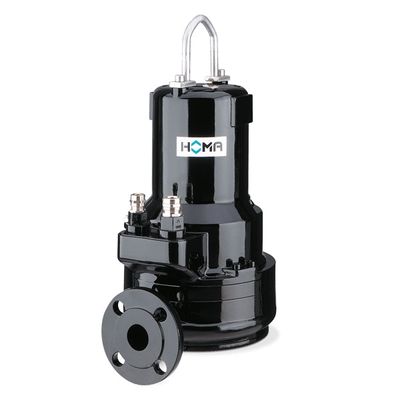

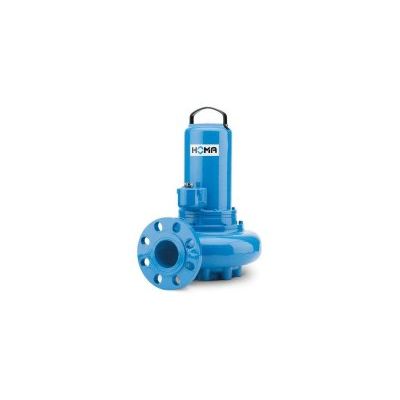

Cast iron submersible pumps with single channel or vortex impeller.

The installation of conventional sewer systems in areas of low population like small villages, farms or under difficult topographic conditions is often extremely expensive, mainly because of the high cost for large diameter pipework installation. HOMA provides the perfect, economical alternative with Barracuda grinder pump pressure sewage systems. The Barracuda pumps cut all solids present in the sewage into small particles. This allows the use of pipes from 1 1/2` diameter, which can be easily laid at low cost with a minimum of construction work.

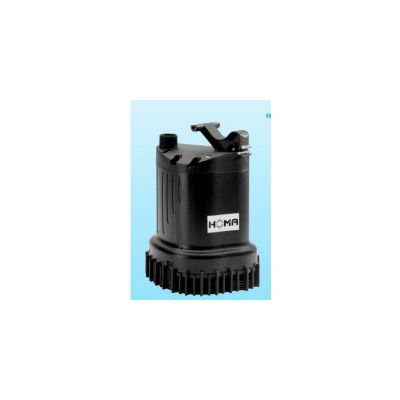

The C 135 W pump is suitable for water circulation in garden ponds and cascades, irrigation, water transfer and drainage in clear or waste water. The water jacket cooled motor with the top discharge protects the motor against overheating even during sip operation.
Installation: Permanent or transportable. Pumped liquid: Clear or waste water containing soft solids with a diameter of max. 8 mm. Max. liquid temperature: 35°C, short term up to 60°C. Operation: Permanent.

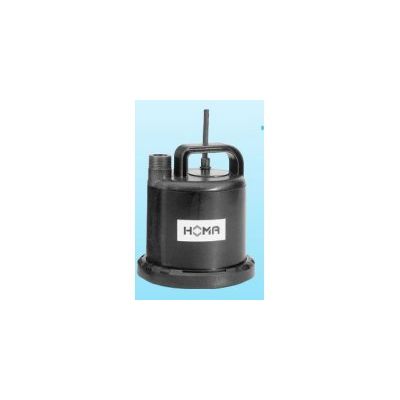

The C 80 scavenger is suitable for irrigation, water transfer and drainage in clear water. For flat-water exhaust to min. 2 mm. Pumping water from collection tanks, for flood relief and water removal from water courses or reservoirs. Suitable also for water circulation in garden ponds and cascades.

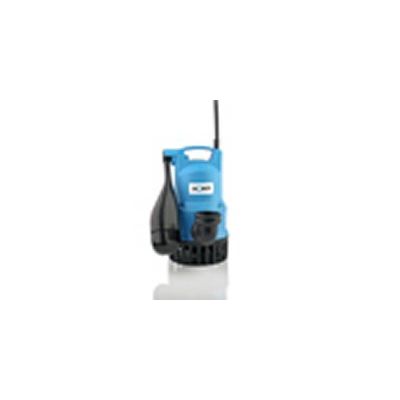

For irrigation and drainage in clear or drainage water. Cellar drainage, pumping water from sumps, pits and rooms. Also suitable for pumping discharge from hand basins, showers and washing machines, for flood relief and water removal from water courses or reservoirs.
10 m connecting cable permits the mobile outdoor use and an immersion depth of 7 m. Cooling jacket ensures optimum motor cooling even during sip operation. Automatic air bleed valve with additional venting screw. Detachable suction sieve for low suction of residual water. Automatic flushing if required.

This model offers a unique hydraulic performance, combined with high efficiency and a supreme quality standard. These pumps are applied wherever extreme high head pumping capability up to 7 bar is required.
