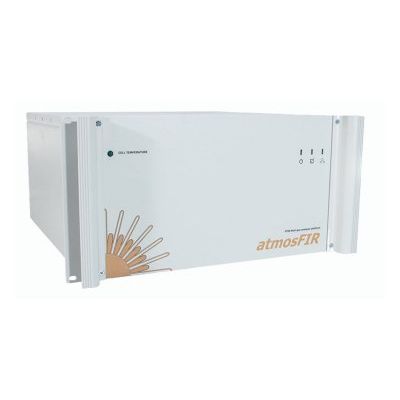

Protea - Model AtmosFIR -Multi-component FTIR Gas Analyser
atmosFIR is the successor to Protea`s previous emissions monitoring FTIR systems, keeping all the features that users found valuable in achieving their measurement results, but offering the benefits of the new atmosFIR platform with increased portability, lower ownership costs and increased measurement performance. atmosFIR can be considered a simple multi-gas analyser for combustion gas measurements; indeed for some users that is all it will be and as such it provides a cost-effective and complete measurement system. However, for the expert user atmosFIR will offer all the benefits of FTIR, with hundreds of gas measurements, multiple analytical ranges, in-depth chemometric result diagnoses and dedicated on-board sampling system.
With Protea`s in-house chemometrics application support and 15+ year history of emission monitoring projects, atmosFIRs offers the user the complete package for their monitoring needs. With long-lifetime VCSEL reference laser diode, unique cell design, and air cooled DTGS detector with 24-bit ADC, atmosFIRs is a step-change in value and service lifetime for FTIR emission gas analysis.
- Stack Emission Testing
- Continuous Emission Monitoring System
- Combustion gases under WID, LCPD
- RealTOCTM measurement
- Speciated VOC with use of high resolution
- Carbon Bed abatement efficiency – inlet and outlet
- Ambient air monitoring from 0.5ppm
- Fire Testing research

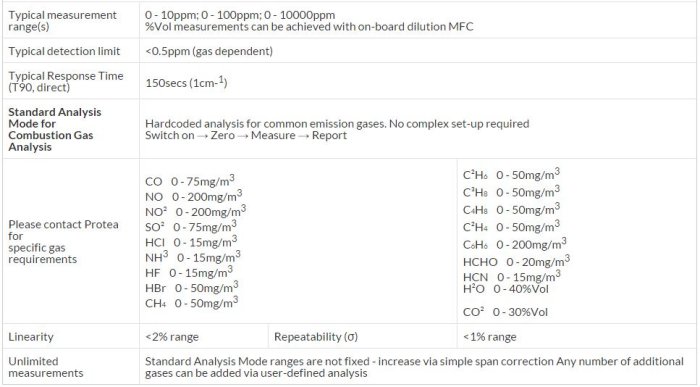

atmosFIRs runs a Standard Analysis Mode with fixed acquisition parameters and chemometric analysis for common emission gases. This makes it incredibly simple to use even for users with no extensive FTIR background. Further analysis methods can be uploaded by the trained user or remotely by Protea.
