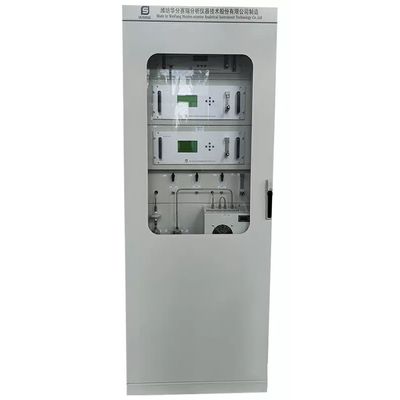

Huafen Sunrise - Model SR-2070 -Multi Component Gas Analyzer
The instrument can simultaneously analysis up to 6 gas components, and accurately and quickly calculate the N2 concentration and gas calorific value according to the gas concentration. The monitoring objects include Co, CO2, CH4, CnHm, O2, H2, AR, SO2 and other gases.
Most popular related searches
multicomponent gas analyzer
sample gas
gas concentration monitor
gas concentration monitoring
corrosive gas
gas analyzer
multi-gas analyzer
H2S
H2S/SO2
multi-gas
- 19 years experience from 2003
- Factory cover10000 square meters
- 3 workshops & 1 office building
- 1 R&D center & 10 engineers & 50 skilled workers
- SIL & ISO certificate & 10 patents
1. Measure Range
Range ( span ):0-100%
- Preheat time:20min(at least);120min( the best )
- Signal output:4~20mA(load ≤750),RS232/485
- Alarm output:High d& Low(Relay),5A/220V AC
3. WORKING CONDITIONS
(1) Environment:
- Environment temperature:-5?~+40?
- Environment humidity:≤85%(non-condensing)
- Air pressure:80KPa~106KPa
- Air flow speed:≤0.5m/s
(2) Power:
- Voltage:220V±22V
- Frequency :50Hz±1Hz
(3) Sample gas:
- Gas temperature:5?~40?
- Gas pressure:Normal
- Gas flow speed:500mL/min;
- Humidity :Relative humidity ≤80%RH(non-condensing)
- Dusty ratio:≤16mg/Nm3
- Corrosion gas :(H2S?NH3…)≤0.1ppm
