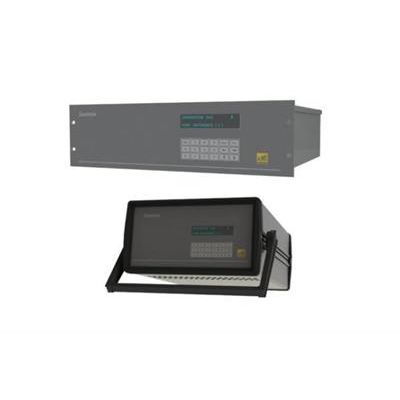

SonimixModel 3012/3022 -Multigas Calibrator With GPT, Ozone & Self Re-Generable Zero Air Generator

SHARE

The multigas calibrator with GPT, ozone and self re-generable zero air generator, Sonimix 3012/3022, is an instrument designed to calibrate manually or by remote control up to 6 monitors installed in an air pollution monitoring station, such as SO2, HC, BTX, CO, NOx and O3.

Most popular related searches

The Sonimix 3012/3022 is equipped with

  • an inlet for high concentration mixtures of diluted gases such as NO, NO2, SO2, CO, HC, BTX or mixtures of several compatible polluants in the same cylinder.
  • a zero air generator composed of an internal compressor with self re-generable filters that removes moisture, O3, NOx, SO2, HC, BTX and optionally CO and CH4.
  • a binary gas dilutor with two inlets (diluted gas and air), based on sonic nozzles (ISO 6145-6 standard)

The ozone generator is regulated by UV-light feedback and compensated from the atmospheric pressure and ambient temperature variations, with alarm on the drift of UV-light as well as the circuits for the GPT.

  • Accuracy – (0,6% rel.)
  • Best quality price ratio
  • No maintenance nor pressurised Air cylinder with its included self re-generable zero air generator
  • Sonic nozzle technology
  • Remote control
  • Ergonomic with LCD display
  • Air pollution monitoring
