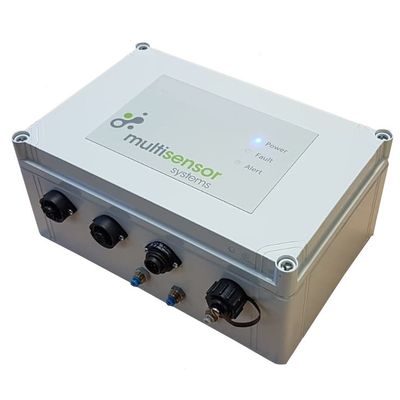

Multisensor - Model MS1900 -Online Oil in Water Monitor and Analyzer (Industrial)
The Drain and Effluent Analyzer is designed to provide continuous measurement of VOCs in industrial and trade effluent discharge points. Regulations on the quality of effluents from trade premises and factories are getting stricter and stricter and VOCs are now in the spotlight.
Thanks to this analyzer you can monitor your effluent discharge and make sure that you detect promptly any problem, avoiding expensive fines and PR disasters. The system comprises the analyzer and the sampling system. As the water goes through the sampling tank, VOCs dissolved in the water move into the gas phase.
Multisensor’s sampling system helps the VOCs to get in the gas phase. This gas is then continuously analyzed and the VOCs concentration in the water is determined.
For applications where drains are being monitored the MS1900 can be used to directly sample gases on the drain. This provides a lower cost solution but reduces absolute accuracy.
Discharge of VOCs into wastewater is an endemic problem in engineering, chemical processing, food and beverage production and other industrial processes.
Spills can lead to illegal discharges, pollution, fines and PR disasters.
For this reason, some industrial facilities have purification plants to remove the bulk of these contaminants from the water before it is discharged, but even these suffer from failures and can be over run.
The cost of not monitoring your effluentWhen spills happen large fines can be issued by the Environmental Agency and local, national and social media can turn an accident into a PR disaster with long-term implications.
Additionally it is likely that regulatory bodies will ask for expensive on-line TOC analysers to be installed, which require a lot of reagents and maintenance at a very high additional cost.
The SolutionBy installing a VOC Drain and Effluent Monitor at the effluent, you can be notified as soon as the values start to increase and take appropriate action, avoiding all the problems associated with unexpected pollution events.
The VOC Drain and Effluent Monitor is used to check the industrial effluent from industrial facilities and business premises to ensure that it is complying with environmental regulations.
Its contactless measurement technique means that:
- It does not need reagents
- Requires little or no maintenance between services
- It’s robust and reliable
- It is cost effective
- Spec: Value
- Range*: 100 ppb - 10 ppm in water
- Measurement: Continuous
- Accuracy: +/-15%
- Data Interface: 4 - 20 mA, µSD
- Alarms: x1 Via Relay Drivers,
- Levels User Definable
- Operating Temperature Range: 0 °C - 50 °C
- Water Temperature Range: 1 °C - 50 °C
- Power Consumption: 9 W (90-240 VAC or 24 VDC)
