Naptex - Model 100 -Durable Needle Punched Geotextile
Naptex 100 is a non-woven geotextile, produced by the method of needle punching, partially thermally hardened, made 100% from polypropylene. Owing to its properties, Naptex 100 characterizes in multifunctionality and has a wide range of applications, mostly for separation, filtration, reinforcement and stabilization of the ground.
Most popular related searches
needle punched geotextile
nonwoven geotextile
water filtration
drain pipe
woven geotextile
drainage system
geotextile
groundwater filtration
water protection
groundwater protection

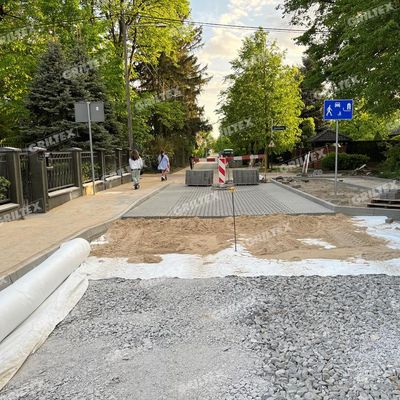

- Reinforces the substructure and ensures stability of roads, pavements, drives and car parks
- Used under paving stones and slabs For stabilization of the ground with maintained water filtration
- Protects the drain, filtrates the water and separates the aggregate around the draining pipe
- In perimeter drainage of foundations,rotects the insulation from damage, and the drainage system from clogging
- Separates the thermonsulation layer from the gravel backfilling, at the same time stabilizing the terrace and roof flooring
- Weight: 90-110 g/m2
- Material: Polypropylene
- Breaking strength (EN ISO 103019): 7,2 / 2,4 kN/m²
- Dynamic breakdown strength (EN 13433): 30 mm
- Static breakdown strength (CBR test) (EN ISO 12236): 1,1 kN
- Filtration opening (EN ISO 12956): 175 μm
- Water flow speed index (EN ISO 11058): 0,11 m/s
