DESMI PyroBoom - New Standard for In-Situ Burning

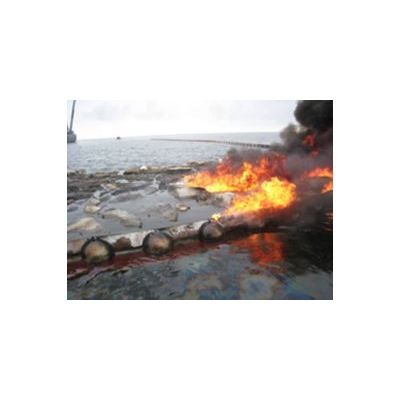

PyroBoom has been demonstrated to maintain its effectiveness and structural continuity even after exposure to a 2400 of fire for up to 24 hours. Operationally, PyroBoom exhibits the toughness and durability that are the trademarks of its AFTI siblings, GlobeBoom and Oilfence. In-situ burning of oil spills is becoming recognized as an effective and efficient solution to removal of spilled oil. PyroBoom is a unique barrier utilizing a blend of refractory fabrics and metals to achieve a continuous burning capability of over 24 hours in a boom with conventionally geometry and sea keeping characteristics. We have been developing PyroBoom since 1983 to meet the strenuous and unique operating regime of in-situ burning of petroleum spills.
PyroBoom is a solid flotation barrier that combines a unique wire reinforced refractory fabric for the above surface barrier with conventional GlobeBoom fabric for the skirt. The glass foam filled, steel hemispheres are mechanically attached to the barrier. The modular construction allows for easy salvage, maintenance and repair in the field.
Fabric:
- Fireproof section consists of silicone coated, high temperature metallic (Inconel) wires interwoven with similar wires and refractory materials (Fiberfrax). For strength and flexibility below the water line, our proven PVC coated Polyester "ED" fabric is used.
Dimensions:
- Draft: 48.3cm-nominal
- Freeboard: 27.9cm-nominal
- Overall Heigh: 76.2 cm
- Temperature Range: -48° to + 1315°C-approx
- Weight: Approximately 13.4 kg/m
- Buoyancy: To Weight Ratio-approx 3.15:1
- Total available buoyancy Approx 42.1 kg/m
- Fabric: Tensile strength: 178.6 kg/cm width > 13636 kg total -not including chain Tear-across length: 227 kg
- Flotation: Stainless steel hemisphere filled with a high temperature foam material
- Ballast: 8mm hot dipped galvanized chain-1.52 kg/m
