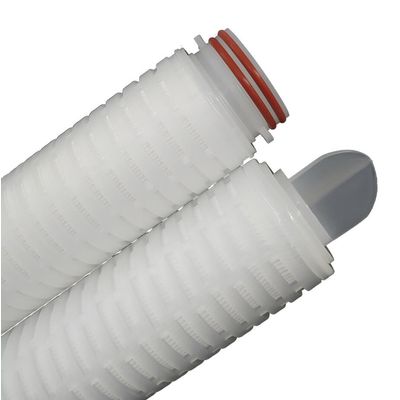

ARC - Nylon Cartridge Filter

ARC - Nylon Cartridge Filter

PMB-NY is an absolute membrane pleated filters,the double layers N66 membranes provided large filtration area,insure the high flow rate and low pressure drop, it use for Biopharmaceutical,Chemical Pharmacy steriliation filtration.

Most popular related searches

autoclave steam sterilizer

nylon cartridge filter

Outer Cage: Polypropylene
Inner Cage: Polypropylene
Endcaps: Polypropylene
O-ring & Gasket: Silicone, EPDM
Filter Media: N66 Membrane

Ratings 0.1,0.2 micron
Absolute Filter Rating
High surface area
Long service life
FDA listed all polypropylene components

OD:2.7"(70mm)
Length:10",20",30",40"

Normal Operation Temperature: up to 55°C
Max Operation Temperature: 90°C △P≦1Bar
Maximum Pressure differential: 4.2bar at 25°C
Maximum Reverse pressure differential: 2.1 bar at 25°C
Filtration Area: >0.6m2
Forward Online Steam Sterilization( 1Bar): 135°C
Autoclave Steam Sterilization: 121°C

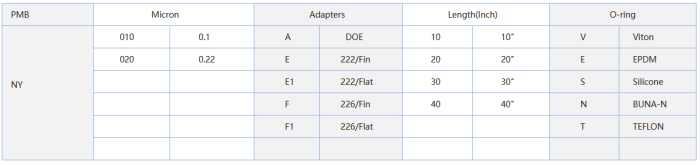

Part No=NY+Micron+Adapters+Length+O-ring
EG: A 40 inch 0.22um filters with 226/Fin adapters and Viton O-ring
The Part NO:NY022F40V

ARC - Nylon Cartridge Filter

Materials of Construction

Features

Dimension

Specifications

Ordering Guide

Part No=NY+Micron+Adapters+Length+O-ring
