ARC Filtration System Ltd

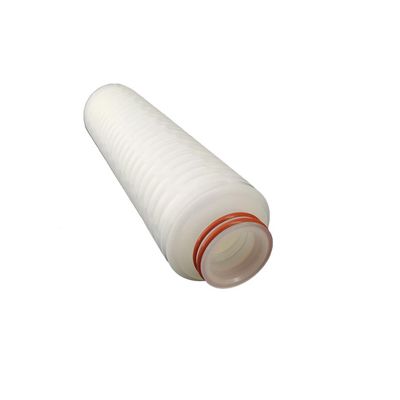

ARC - Model FNB-NY -Nylon Membrane Filter
FNB-NY is an absolute membrane pleated filters,the double layers N66 membranes provided high filtration performances,and with high flow rate and low pressure drop at same time, it use for beverage,soft drink steriliation filtration.
Most popular related searches
membrane filtration
filter membrane
nylon membrane filtration
autoclave steam sterilizer
steam sterilizer
steam sterilization
filter element
steam autoclave
pleated filter
double layer membrane filtration
- Outer Cage: Polypropylene
- Inner Cage: Polypropylene
- Endcaps: Polypropylene
- O-ring & Gasket: Silicone, EPDM
- Filter Media: N66 Membrane
- Ratings 0.45,0.65,1.0 micron
- Absolute Filter Rating
- High surface area
- Long service life
- FDA listed all polypropylene components
- OD:2.7"(70mm)
- Length:10",20",30",40"
- Normal Operation Temperature: up to 55°C
- Max Operation Temperature: 90°C△P≦1Bar
- Maximum Pressure differential: 4.2bar at 25°C
- Maximum Reverse pressure differential: 2.1 bar at 25°C
- Filtration Area: >0.6m2
- Forward Online Steam Sterilization( 1Bar): 135°C
- Autoclave Steam Sterilization: 121°C

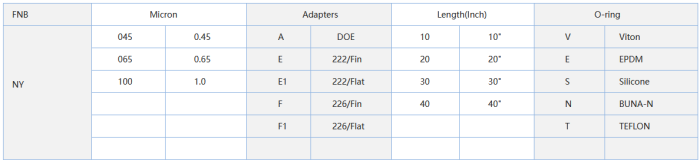

- Part No=NY+Micron+Adapters+Length+O-ring
- EG: A 40 inch 0.45um filters with 226/Fin adapters and Viton O-ring
- The Part NO:NY045F40V
