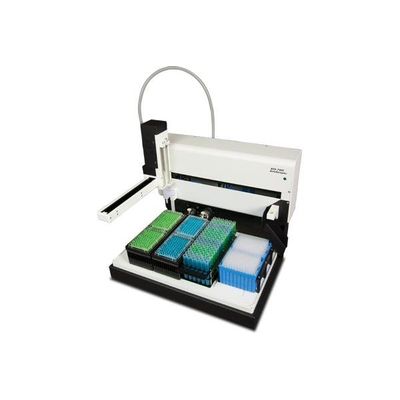

Teledyne CETAC - Model ASX-7000 -OEM Autosampler Platform
The ASX-7000 OEM autosampler was developed to handle the specific requirements of OEM customers needing robust, high-precision automation. The autosamplers of the ASX-7000 platform provide the accuracy needed to operate with 384 micro-titer wells and are able to perform difficult operations such as septum piercing and pick and place operations. The ASX-7000 OEM platform is offered in 4 standard sizes. The platform design allows the height, depth and tray requirements to be easily modified. Additional options and modules create a custom autosampler for your specific application.
Most popular related searches
heated sampling probe
autosampling system
syringe pump
digital temperature controller
sampling probe
autosampling
carbon fiber
liquid handling
LC-MS
heated sampling
- Syringe Pumps: Accommodates up to 4 syringe pumps with a wide range of syringes available. User programmable, pump speed settings available.
- Temperature Control: Cooling/heating option allows computer controlled temperature control from 1°C to 70°C with an accuracy of +/- 0.5°C.
- Heated Lines: Heated sample probe and sample lines to increase sample flow in more viscous samples, up to 65°C.
- Septum Piercing: Single and multiple septum piercing available.
- Fraction Collection: Fraction collection and autosampling in one platform. Combining two techniques to reduce bench space required.
- Pick-n-Place: Precisely deliver racks and/or vials to user defined locations.
- Injection Valves: Low pressure to ultra high pressure. Supports valves manufactured by Rheodyne, VICI, Valco, and many others.
- Sample Probes: Glass lined stainless steel, Teflon encapsulated carbon fiber.
- ASX-7100 Dimensions (H x W x D) / Weight : 37 cm (14") x 39 cm (15") x 46 cm (18") / 18 kg (39 lbs)
- ASX-7200 Dimensions (H x W x D) / Weight : 37 cm (14") x 54 cm (21") x 46 cm (18") / 21 kg (45 lbs)
- ASX-7400 Dimensions (H x W x D) / Weight : 57 cm (22") x 54 cm (21") x 46 cm (18") / 23 kg (50 lbs)
- ASX-7600 Dimensions (H x W x D) / Weight : 81 cm (32") x 54 cm (21") x 46 cm (18") / 35 kg (77 lbs)
- Z-Axis Options :
- Single Z Axis – 100 mm
- Single Z Axis – 150 mm
- Single Z Axis – 200 mm
- Dual Independent Z Axis – 150 mm
- Available Height Options : 150 mm, 200 mm, 250 mm, 325 mm
- Probe Positioning Resolution : 384 well compatible
- Z Arm Drive Capacity : Max. load for Y-axis arm - 22.2 N / 2.27 kg / 5.0 lbs
- Vertical Punch Force : Z-axis force = 31.4 N / 3.2 kg / 7.0 lbs
- Max. Axis Speed (mm/s) :
- X Axis = 163 mm/s
- Y Axis = 142 mm/s
- Z Axis = 71 mm/s
- Communication Interface :
- 1 Serial Ports
- 1 USB Port
- 4 Auxiliary Inputs / 4 Auxiliary Outputs
- Power Requirements : 100-240 VAC, 47-63Hz, 1.9A
- Racks and Vials :
- Accomodates most commerciallly available racks
- Supports 2 mL vials to 500 mL bottles
- Supports SBS microtiter wells (384, 96)
- Custom racks available
The ASX-7000 platform is highly customizable for a wide range of automation applications, including LC-MS, fraction collection, titration, liquid handling, and more.
