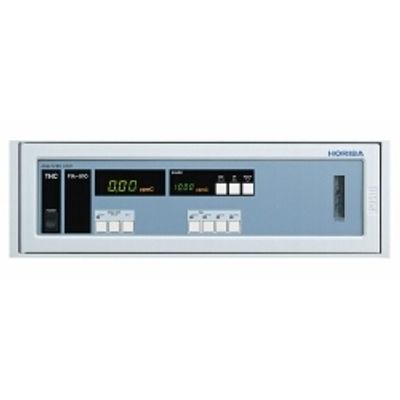

HORIBA - Model FIA-510 -Online Process

• Easy to operate
  A digital display makes it possible to take direct readings of concentrations, and zero and span calibrations can be done at the touch of a button.
• Selectable response time
  The response time (electrical) T90 can be set with a dip switch to match individual needs (3, 10, 30 seconds; set at 10 sec. when delivered).
• Sampling Unit
  Exclusive sampling unit is available for measuring dirty and wet samples such as flue gas, which can even be used by stacking one on top of the others.

Measuring Range

• Components: THC
• Min.Range: 0 - 50 ppm C
• Max.Range: 0 - 3% C
• High-sensitivity  Range: 0 - 10 ppm C

Performance & Specification

• Configuration: Desk top or 19" panel mount
• Measuring method: Flame Ionization Detection
• Repeatability: ±0.5% F.S. (±1.0% F.S. for high-sensitivity range)
• Drift: ±1.0% F.S. per day (±2.0% F.S. per day for high-sensitivity range)
• Response time: 10 sec. (electrical)
• Ambient conditions: Temperature: 0 to 40 °C)
• Humidity: 90& RH or less
• Power: 100/115/220 V AC, 50/60 Hz, 500VA
• Output signal: 0-1V DC, 0-10V DC, 0-16 or 4-20mA DC, isolated
• No. of range: 7 ranges
• Display: LED digital display (effective 4 digits)
• Operation gas: Combustion gas should be specified; pure H2 (flow rate: about 30 mL/min.) or 40% H2/He (flow rate: about 120 mL/min.)
• Calibration gas: Zero: N2 or Air, Span: Span gas
• Dimensions: 430(W) x 132(H) x 550(D) mm, 16.9(W) x 5.2(H) x 21.7(D) in
• Mass.: 20kg, 44 lb
• Sample gas requirements: Dust: No dus
  • Mist: Completely removed
  • Pressure: More than 50 mm H2O
  • Temperature: Ambient temperature
  • Moisuture: 5°C saturation or below
  • Flow rate: 500 mL/min
  • Exhaust gas: Discharged at ambient pressure
