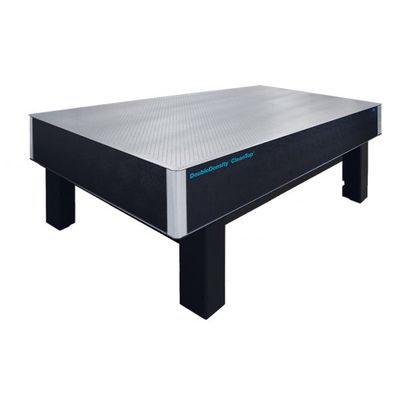

CleanTop Performance series have three levels of damping performance as well as a multitude of configuration options for a variety of use cases. Individual tables can even be mechanically coupled in order to create complex rigid table shapes without loss of damping performance.

The System 1 optical table support systems (sold separately) have the same configuration flexibility and unparalleled vibration isolation performance.

Performance Levels

• Research Grade 784 Series
  Provides the ultimate in optical top performance. Unmatched in the industry, Research Grade performance combines the smallest cell-size and highest core density with the unique CleanTop® design, all-steel construction, and the highest level of structural damping commercially available.
  Research Grade CleanTops are recommended for the most demanding applications including interferometers, holography, and ultra-fast lasers, as well as the most severe floor vibration environments. For the best overall vibration control, consider combining this top with a LaserTable-Base™ support, a hybrid air/piezoelectric, 2-stage vibration cancellation system.
• Scientific Grade 783 Series
  Scientific Grade has the same design features as Research Grade including core size and density, CleanTop cups, and all-steel construction with reduced damping. Peak compliance levels for Scientific Grade damping exceed peak compliance levels of Research Grade damping by a factor of 4.
• Laboratory Grade 781 Series
  Provides an economical performance level for the least sensitive applications in less severe floor vibration environments. The Laboratory Grade is appropriate for general lab applications where the primary requirement is for a rigid, flat mounting surface.

All steel construction. No particle board sidewalls or plastic layer between top skin and honeycomb core. Assures maximum strength and structural integrity

Smallest core cell size, highest core density. The CleanTop design does not require enlarging the steel honeycomb core cell size because CleanTop cups are cylindrical, not conical as found in plastic layer designs. CleanTop`s average cell size of 0.5 in.(2) is at least 50% smaller than that achieved with plastic layer designs assuring the highest stiffness and greatest core-to-skin bonding contact area

Steel to steel to steel. CleanTop achieves a spill-proof core with only two bonding layers: top skin to core and core to bottom skin. Imitations must add a third bonding layer which weakens the structure: top skin to plastic layer, plastic layer to core, and core to bottom skin.

Thermal stability. The CleanTop all steel construction assures materials of identical coefficient of thermal expansion ensuring optimal thermal stability.

TMC`s CleanTop Optical Top is the best method yet for providing a spill-proof, clean, precise, and corrosion resistant optical top with unmatched structural performance. CleanTop is now a standard feature of all TMC optical tops.

Individual CleanTop cups are epoxy-bonded under each tapped hole after it is tapped and cleaned. Cups are made from chemically resistant nylon 6, and stainless steel (304 alloy) cups are available. Holes are now tapped and countersunk prior to adding the cups to allow the machined top sheet to be thoroughly cleaned with open, rather than blind, holes prior to bonding. The top plate is processed through a custom TMC industrial cleaning center where a high pressure, high temperature cleaning solution is forced through each threaded hole, completely clearing any machining or tapping debris. Several rinse and dry cycles ensure an essentially "sterilized" top surface prior to bonding the cups.

CleanTop represents another innovation in TMC`s long optical top tradition of industry "firsts" including:

• First spill-proof optical top (CleanTop)
• First all-steel optical top
• First oil-free optical top
• First honeycomb core registered  to the tapped hole array
• First lightweight breadboard with formed rather than drilled holes
• First vacuum compatible optical top

Features:

• Liquid spills on the surface are contained and cannot reach the top`s honeycomb core.
• The core is completely clean and dry with no residual thread-cutting oils to out-gas.
• Extremely clean tapped holes make screw insertion smooth and simple.
• Easy retrieval of small parts dropped into the holes is assured.
• Since no penetration of the core is possible when dangerous chemicals are used on the top`s surface, health hazards will not occur by chemicals reaching the core unnoticed.

• Core: Steel honeycomb, closed cell, 0.01 in. (0.2 mm) thick foil
• Core shear modulus: 275,000 PSI (19300 kg/cm²)
• Core cell size: < 0.5 in.² (3 cm²)
• Core density: 13.3 lb/ft³ (230 kg/m³)
• Flatness: +/-0.005 in. (0.13 mm) within entire tapped hole pattern, regardless of table size | +/- 0.004 in. (0.1 mm) over a 2 x 2 ft (60 x 60 cm) area
• Top skin: 400 series 3/16 in. (5 mm) thick ferromagnetic stainless steel
• Sidewalls: Damped formed steel channel covered with vinyl
• Tapped holes: Backed by 1 in. (25 mm) long CleanTop nylon cups. Steel cups optional.
