Redkoh - Model DT3000 -Oxygen Analyzer
A Zirconia based oxygen analyzer used for boiler trim control and EPA requirements. The Datatest Model DT3000 Oxygen Analyzers provide reliable 02 concentration data to enable optimization of fuel consumption, improve combustion, enhance process control, and minimize air pollution. The Model DT3000 is ideal for applications that include coal, oil, gas-fired and packaged boilers, furnaces, incinerators, dryers, process heaters, kilns and other combustion applications where economical, 02 monitoring is required.
In-Situ System
The O2 Zirconia sensor cell, mounted inside the In-situ probe head, but outside the stack or duct, allows for cell replacement without removing the probe from service.
Extractive Analyzer for CEMS
The O2 CEMS analyzer is a Combined Control and Sensor Unit.

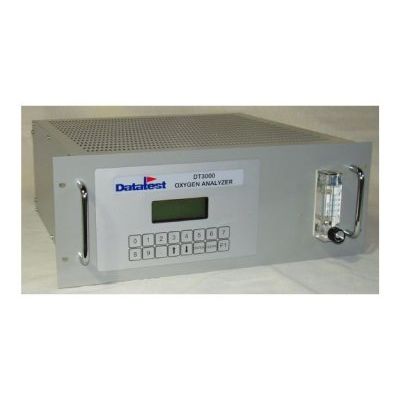

Typically supplied as a Panel Mount or 19” Rack mount, the analyzer is designed to be used in a CEM system along with other analyzers.
Close Coupled Extractive Analyzer
This unit combines the Control, O2 Sensor cell, sample pump, filter and water drop-out unit.
This system is typically used on low particulate systems where the probe and the analyzer enclosure can be mounted within reasonable proximity of one another.
The following are common to the above systems:
- Automatic calibration
- Available is assorted probe lengths
- Auto back purge
- Back purge time and real time displays
- Front panel programmable
- Hi/Lo set point display
- Instantaneous and averaged 4-20mA outputs
- Meets or exceeds USEPA 40 CFR 60, Appendix B, P.S.3
- RS 422/232/485 Modbus RTU output
- Scales in %
- Sensor temperature display
- Zero gas / span gas value display
