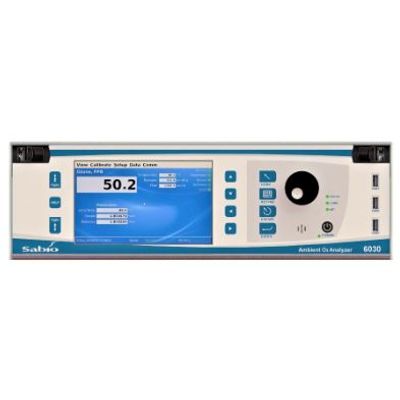

Sabio - Model 6030 -Ozone Analyzer

Using the Beer-Lambert law. ozone is measured in a single photometric cell by detecting the absorption of ultraviolet (UV) radiation from ozone molecules at a wavelength of 254 nm.

Real-lime comparison of the UV light intensity` for the sample gas to the reference gas yields a precise concentration of ozone.

The single cell design reduces the complexity of the ozone measurement and automatically eliminates zero drift

Advanced, easy to use, menu-driven software allows access to sample conditions and diagnostics and the strip chart feature allows the user to view a time series plot for ozone readings.

The 6030 Analyzer offers a bright color display, data logging capability and advanced communications via Ethernet, USB and RS-232/485.

• Ranges: 0-50 ppb to 0-10 ppm (User selectable)
• Measurement units: ppm, ppb
• 8 second cycle time for fast response
• Large color TFT LCD display
• Various user interface options including touch screen, front panel keypad, external keyboard and mouse
• Menu driven software
• Ethernet TCP/IP, USB and RS-232/485 ports
• Front panel USB connections for peripheral devices and firmware updates
• Four independent analog inputs / outputs VCD with flexible ranges
• 8 standard digital input/outputs (l/Os)
• Automatic temperature and pressure compensation
• Comprehensive internal data logging
• Modbus protocol

• Internal Ozone Generator
• Zero/Span ports
• 4-20 mA current outputs

• EPA Approved Ranges: 0-50 ppb, 0-500 ppb or 0-1 ppm
• Noise: < 0.2 ppb
• Lower Detectable Limit: < 0.4 ppb
• Zero Drift: < 1.0 ppb per 24 hours
• Span Drift: < 1% of reading/24 hours
• Cycle Time: 8 seconds (4 sec. each half-cycle)
• Precision Linearity: < 0.5% of full scale
• Sample Flow Rate: 0.5 to 1 Liter per Minute (LPM)
• Operating Temperature: 5° to 45°C (with EPA Equivalency)
• Operating Humidity: 0 to 90% (Non-condensing)
• Power Requirements: Universal Power Supply, 90-264 VAC, 100 VA, 50/60 Hz, 200 watts
• Voltage Output Ranges: 0.1V, 1V, 2V, 5V, 10V, 4-20 mA (User selectable)
• Input/Output Ports: Rear Panel: Ethernet, USB Device, USB Host (2), RS-232/485 (2)
• Physical Dimensions: 5.25 in. x 17 in. x 22.5 in. (133 x432 x571.5 mm)
• (HxWxD) Weight: 23 lbs. (10.3 kg)
• Certification: US EPA: EQOA-0415-222
