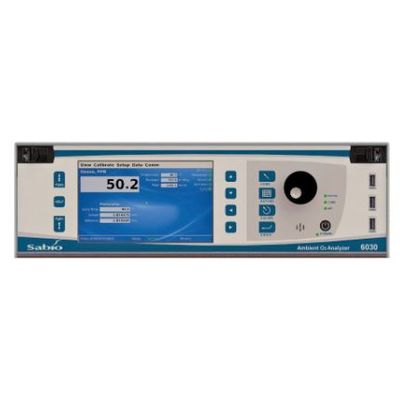

Sabio - Model 6030PS -Ozone Primary Standard Analyzers

Real-time comparison of the UV light intensity for the sample gas to the reference gas yields a precise concentration of ozone.

The single cell design reduces the complexity of the ozone measurement and automatically eliminates zero drift.

Advanced, easy to use, menu-driven software allows access to sample conditions and diagnostics and the strip chart feature allows the user to view a time series plot for ozone readings.

The 6030 Ozone Primary Standard offers a bright color display, data logging capability and advanced communications via Ethernet, USB and RS-232/485.

• Ranges: 0-50 ppb to 0-10 ppm
• Minimum output concentration 5 ppb
• 8 second cycle time for fast response
• Large color TFT LCD display
• Various user interface options including touch screen, front panel keypad, external keyboard and mouse
• Menu driven software
• Ethernet, USB and RS-232/485 ports
• Front panel USB connections for peripheral devices and firmware updates
• Four independent analog outputs with flexible ranges
• 8 digital input/outputs (I/Os)
• Automatic temperature and pressure compensation
• Comprehensive internal data logging
• Modbus protocol

• Internal Ozone Generator
• Zero/Span ports

• EPA Approved Ranges: 0-50 ppb, 0-500 ppb or 0-1 ppm <
• Noise: 0.2 ppb
• Lower Detectable Limit: < 0.4 ppb
• Zero Drift: < 1.0 ppb per month
• Span Drift: < 1% per month
• Cycle Time: 8 seconds (4 sec. each half-cycle)
• Precision: < 0.5% of Reading
• Linearity:
• Sample Flow Rate: 0.5 to 1 Liter per Minute (LPM)
• Operating Temperature: 5° to 45°C (with EPA Equivalency)
• Operating Humidity: 0 to 90% (Non-condensing)
• Power Requirements:
• • Universal Power Supply,
  • 90-264 VAC, 100 VA, 50/60 Hz
• Voltage Output Ranges: 0.1V, 1V,2V,5V, 10V, user selectable
• Input/Output Ports: Rear Panel: Ethernet, USB Device, USB Host (2), RS-232M85 (2)
• Physical Dimensions: 5.25 in. x 17 in. x 22.5 in.
• (H x W x D): (133 x432 x571.5 mm)
• Weight: 23 lbs. (10.3 kg)
