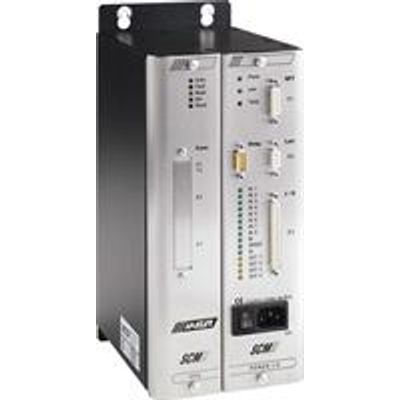

Hasler - Model SCM2 -Panel Controller
FromHasler Group
SCM2 is adaptable to every HASLER Weigh Belt Feeder. SCM2 (Smart Control Module) is a single feeder control module to acquire and process feeder input data, command signals and to pilot the motor drive unit. Each dosing equipment is controlled by a dedicated SCM2, for continious or batch dosing applications Precabling module for a fast installation. Potential use of standard components for the modules I/O. Connection between additional feeders and the operator interface via network Lon Bus.
Most popular related searches
strain gauge load cell
weigh belt feeder
load cell
strain gauge
belt feeder
electrical safety
dosing system
weigh feeder
electrical safety product
strain sensor
Configuration and maintenance software allowing
- Complete reading & writting of parameters
- Remote inputs / outputs configuration
- Diagnosis for maintenance (creation of data files, trends plotting, etc.)
- Remote maintenance
Easy Maintenance
- Entirely removable steel frame
- AUXBOARD + CPU steel framed and strippable
- Immediate visualisation of the I/O and other module functions
- DB type connectors
- Analog strain-gauge load cell (through converter) in 4 or 6 wires (more than 65 000 points resolution)
- Digital Load-cell (1 million points) i.e. SFT.
- Adjustable digital filter and fast weight acquisition
Communication with the Host Sytem
- Modbus TCP (Ethernet)
- Modbus RTU (RS422)
- Allen Bradley Data Highway (RS422)
- Siemens 3964R (RS422)
- Profibus DP (RS485)·
- Device-Net
- Modbus Plus
Power requirements
- Supply voltage : 115VAC +/-10% or 230 VAC +/-10%
- Supply frequency : 47 – 63 Hz
- Max. Power Consumption : 50 W
- Switch-On Current : Max. 2A for 2AC for 1 or 2 power cycles
Dedicated Inputs / Outputs
- Digital Inputs (standard) (i.e., 24VDC...) : 8
- Digital Outputs : 4
- Digital Inputs for speed and index acquisition : 3
- Analog Input : 1
- Analog Output : 1
Environmental ratings
- Area Classification : General Purpose
- Operating Ambient Temp. : -20°C to 60°C
- Storage Ambient Temp : -25°C to 70°C
- Operating Altitudet : <3000m
- Max. Humidity : 95% at 25°C without condensation (DIN 4004to 0 Class F)
- Degree of Protection : IP30
Remote Inputs / Outputs
- Digital Inputs : 5 – 24 – 48 VDC / 24 – 120 –230 VAC
- Digital Outputs : 5 – 24 VDC / 230 VAC / Relay SPST-DPDT
- Analog Inputs / Outputs : 0 - 20 mA / 4 - 20 mA / 0 – 10 V
Dimensions of SCM Display
- Height : 144 mm
- Width : 144 mm
- Depth : 60 mm
Dimensions of SCM2-P
- Height: 315 mm
- Width : 134 mm
- Depth : 201,5 mm
- Depth with connect. : 260 mm
Alternative
- SCM2 is also available in a feeder integrated version : FIELD
- Ref. to Technical Sheet SCM2-F.260.001.E.
Electrical Standards
- General electrical emissions : EN 50081-2
- General Electrical Immunity : EN 50082-2
- Electrical safety : EN 61010-1
