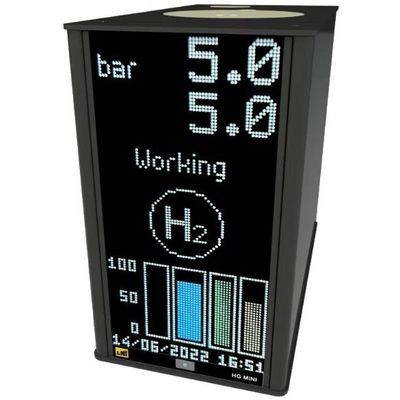

LNI - Model HG Mini -PEM Hydrogen Generator
The HG MINI is able to generate up to 300 cc/min of Hydrogen with purity better than 99.999% and pressure up to 12 bar (174 psi). The HG MINI includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved. The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its unique humidity safe guard. The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The LED matrix interface provides a simple and immediate display of the status of the unit.
- PEM cell technology with integrated tank (patented)
- Flow rate up to 300 cc/min
- Pressure up to 12 bar (174psi)
- USB port standard
- Purity: 99.999%
- Static dryer + desiccant column
- Safety routine and self monitoring
- Reduced foot print
- Smart humidity safe guard (patented)
- High pressure GLS electronically controlled (patented)
- GC-FID
- GC-NPD
- GC-FPD
- GC-PFPD
- THA

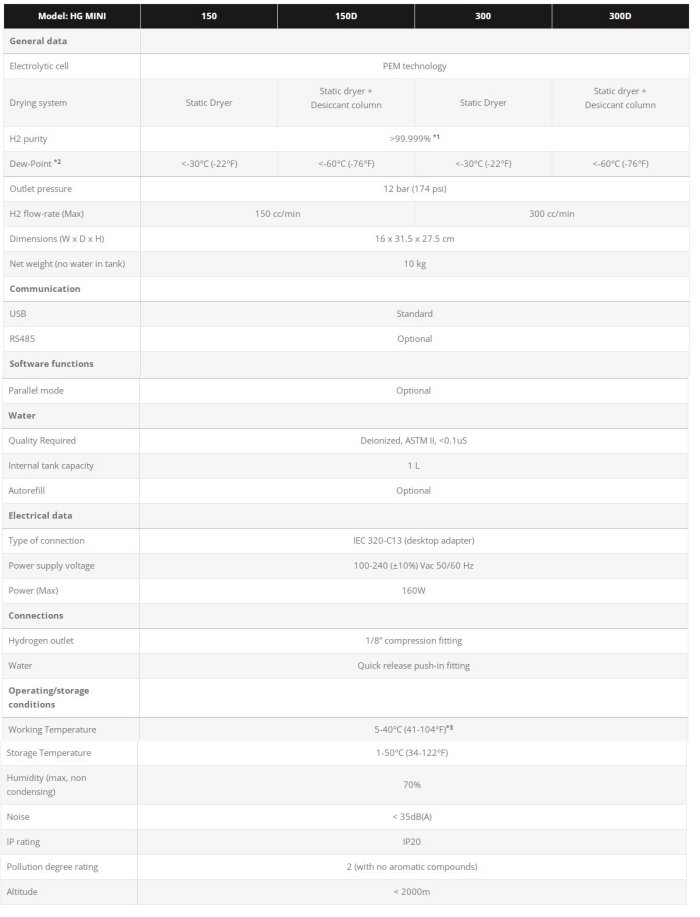

*1 Referred to O2
*2 ADP (Atmospheric Dew Point)
*3 with temperature > 35°C the H2 purity could be less
Discover also…
LNI offers hydrogen sensors and a wide range o laboratory benches for GC, GC-MS systems. Completely modular and customizable according to the specific application, our lab work benches can be combined to configure complete laboratory workstations. They are designed for all OEM instruments (Agilent, Shimadzu, Sciex, Thermo, Bruker, Perkin Elmer, Waters) as well as for our premium LNI gas generators.
