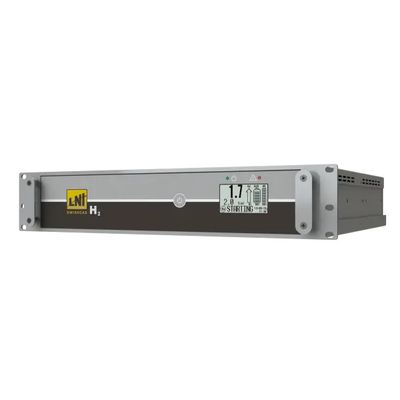

HydroGen - Model Series HG Rack 2U Basic (SX 3080) -PEM Rack 19 Inch Hydrogen generator
The HydroGen series HG RACK 19” 2U BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG 2U 19 inch BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG 19 inch 2U BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
- Quick installation
- Easy use
- Hydrogen flow rate up to 600 cc/min
- Pressure up to 10 bar (145 psi)
- Hydrogen purity: 99.9999%
- THC: < 0.1 ppm
- RS 485 and USB as standard
- LAN optional
- Dryer with no maintenance
- Reduced foot print: 19 inch rack 2U
- Smart humidity safe guard (patented)
- High pressure GLS electronically controlled (patented)
- GC-FID / GC-NPD / GC-FPD
- THA
