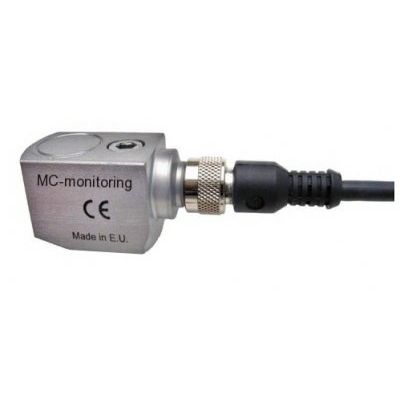

MC - Model PVS-113 / PVS-111 -Piezoelectric Velocity Sensor
FromMC Monitoring SA
PVS-113 and PVS-111 are piezoelectric sensors with integrated electronic providing velocity output. PVS-113 sensor is designed with a side exit output with M12 mating connector. On request, a version with integral cable is also available. PVS-111 sensor is designed with top exit output available with integral cable or M12 mating connector.
Most popular related searches
structural vibration monitor
bearing vibration monitoring
vibration monitoring
bearing monitoring vibration
bearing vibration
structural monitoring
acceleration sensor
bearing monitoring
monitoring bearing
integrity monitoring
- Absolute bearing vibration monitoring
- Structural vibration monitoring
-
Sensitivity: 4mV/mm/s (100mV/ips)
-
Frequency response: 1.9Hz to 7000Hz
-
Annular shear mode piezoelectric configuration
-
Dual case isolation with Faraday shield
-
Ultra low noise electronic
-
Miswiring and surge protections
-
Low cost IP67 overmolded M12 cable assembly
-
M12 offers compatibility with sensors used in automation.
-
Stainless steel body protected against water, shocks.
