Autoclavable plastic funnel for the MBS I system.
- Simple to use.
- Safe sealing mechanism.
- Shorter preparation time.
- High reproducibility.
- Funnels can be autoclaved up to 50 times.
- Large funnel capacity for foaming liquids.
- Easy to validate.
- Risk of cross-contamination is minimized.
Microbiological filtration system

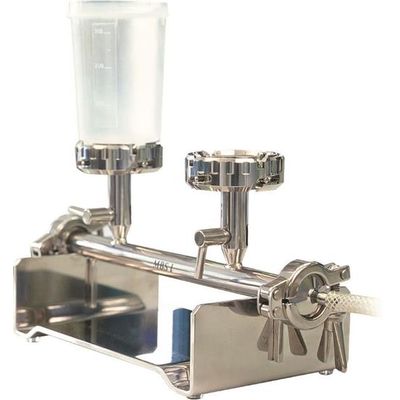

MBS I is an excellent system for optimal microbiological control using membranes. The overall procedure time is reduced to a minimum. The design of the system, which consists of an electrical membrane dispenser, a funnel dispenser, and a vacuum manifold, leads to more reproducible results. The special sealing technique ensures easy handling and high integrity of the funnel and membrane during filtration. This keeps any cross-contamination to a minimum.
A combination of comfort and progress
The combination of the funnel dispenser and the Membrane-Butler E in the MBS I system is constructed so that when a funnel is taken from the dispenser, the butler automatically dispenses a membrane from the sterile pack, ready to use.
Find the right funnel
The autoclavable plastic funnel for the MBS I is a true innovation.The new funnel does not require tedious flaming of stainless steel filtration equipment for sterilization. It is simple to use and ensures sterility. Funnels are provided sterile in a magazine and save time especially when a large number of samples need to be processed by one apparatus. The funnels (350 ml) are of high-grade polypropylene and can be autoclaved up to 50 times. For applications in which funnels are only used once, the system offers another solution: a 100 ml funnel that is presterilized and supplied ready for immediate use. A special closure mechanism at the extraction edge ensures that the funnel seals tightly with the membrane.
MicroPlus membrane filter – the plus for stability
Whatman MicroPlus membrane filters from Cytiva are an excellent addition to the MBS I for the beverage industry. Wherever viscous or particle loaded solutions are being filtered, MicroPlus filters with their stability and non-blocking design are a good choice. Filtration speed due to optimized flowthrough, ease of use, and high reproducibility contribute to the unmatched quality of MicroPlus.
- Parameter: MBS I Plastic Funnel 100 ml, PP, autoclavable
- MBS I Workflow : When taking a new presterilized funnel, the membrane is dispensed automatically Membrane is placed onto the filter base and the funnel installed Liquid is poured into the funnel and a vacuum is applied Membrane is easily removed after filtration
- Filter Volume : 100 ml
- Material : Polypropylene (PP)
