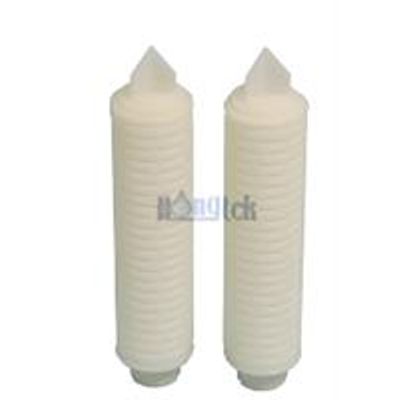

Hongtek - Model PES Series -Pleated Membrane Filter Cartridges
PES Series PES Pleated Membrane Filter Cartridges are made of superior-quality naturally hydrophilic PES membrane and good polypropylene support materials. PES pleated membrane filters use a pleated high surface area Polyethersulphone membrane that has been designed for use in a wide range of liquid processing applications. PES pleated filters provide excellent flow rates, long service life, wide chemical compatibility and without added surfactants that lead to extractables. PES membrane filter cartridges are ideal choice for systems requiring materials that are reliable and have consistent & efficient filtration.
Most popular related searches
pleated membrane filtration cartridge
membrane filtration cartridge
membrane filtration
filter cartridge
PES membrane filtration cartridge
pleated filter
membrane cartridge filter
pleated filter cartridge
filter membrane
liquid filtration membrane
- Filter Media Polyethersulfone(PES)
- Length 5", 9.75", 9.8", 10", 20", 30", 40"
- Outside Diameter 2.75"(70mm)
- Filtration Rating 0.1μm, 0.22μm, 0.45μm, 0.65μm, 1μm
- Core Polypropylene
- Filter Support Polypropylene
- Gasket/O-ring Silicone, EPDM, Viton, NBR, Teflon encapsulated Viton
- End Cap/Cage Polypropylene
- End Cap Type DOE, 222/Flat, 222/Fin(Code 3), 226/Flat, 226/Fin(Code 7), 215/Flat, 215/Fin
- Thermal bonding process eliminates adhesives, all materials meet FDA requirements
- Range of removal ratings from 0.1 to 1 urn and validated for consistent and reliable performance
- PES membrane filters have wide chemical compatibility and can be regenerated for extended service life
- High surface area of naturally hydrophilic PES membrane provides high flow rates and low initial pressure losses
- PES pleated filters are manufactured in clean-room environment, 100% flushed with ultra-pure Dl water and are integrity tested
