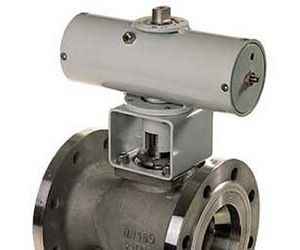

Rotork - Model RCC200 -Pneumatic Quarter-Turn Actuators for Demanding Applications (10 to 900 Nm)
FromRotork plc
For On-Off and modulating. Compact design. For applications where aluminium cannot be accepted.
Most popular related searches
- Double-acting or spring-return
- Pre-tensioned springs for safety
- Connection according to DIN3337/ISO5211 to valve
- Scotch yoke principle gives high torque in the end positions
- High reliability, long life, one-year warranty
- Epoxy coated steel housing. PTFE treated cylinder
- Drive shaft and screws in stainless steel
- Temperature range -20°C to +80°C
- Options: Manual override M1, customer specified paint, quick acting, speed restrictor, low temperature, high temperature, oil hydraulics

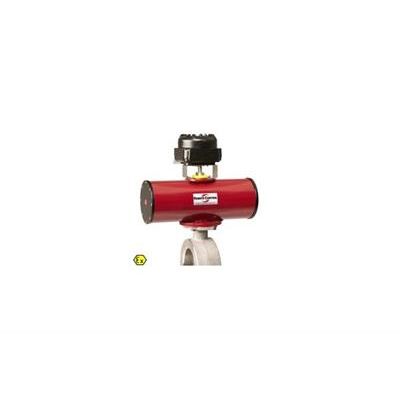

RCC200 firesafe pneumatic quarter-turn actuators (25 to 150 Nm)
- For On-Off and modulating
- Compact design
- Single-acting actuators with spring-return
- "Firesafe" design for applications with extreme demands on function and safety
- Pre-tensioned springs for safety
- Connection to valves in accordance with DIN3337/ISO5211
- Scotch yoke design provides high torque in the end positions
- High reliability, long life, one year warranty
- High efficiency, low air consumption
- Epoxy coated steel housing. PTFE treated cylinder. Steel pistons
- Temperature range: 0°C to +150°C plus +1000°C for up to 1 hour
