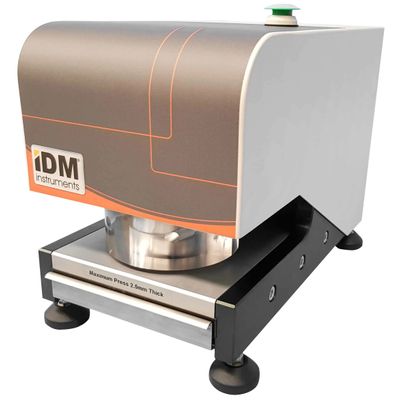

IDM - Pneumatic Sample Cutter
The Pneumatic Sample Cutter allows the preparation of samples in various shapes. It cuts into circular or square or rectangle test pieces with uniform edges. It is pneumatic. Thus, ensures easy operation. It allows repetitious sample cutting. With the help of the ruler cutting dies, this machine can be used to produce samples for multiple tests.
Most popular related searches
This Pneumatic sample cutter allows preparing samples as per international standards like
• AS
• ISO
• SCAN
• DIN
• TAPPI
• BS
• APPITA
- Paper
- Cartonboard
- Easy to use
- Fast results
- Accurate
- AS
- ISO
- SCAN
- DIN
- TAPPI
- BS
- APPITA
- Front paper load for easy operation
- One or more sheets can be cut simultaneously
- Punch and Die made from tempered alloy steel
- Safety Guard
- Grammage range: 35 to 1,000gsm
- Thickness: Up to 4mm thick
- Cutter sizes selection: 100cm2; 38.1x70mm; 62x50mm; 63x53mm; 50x62mm; 38x70mm; 15x100mm
- Custom cutter size available upon request.
- Foot Switch
- Air supply: 80 — 100 psi
- Dimensions: 250mm x 230mm x 380mm
- Weight: 23kg
