Dragon Water Technologies

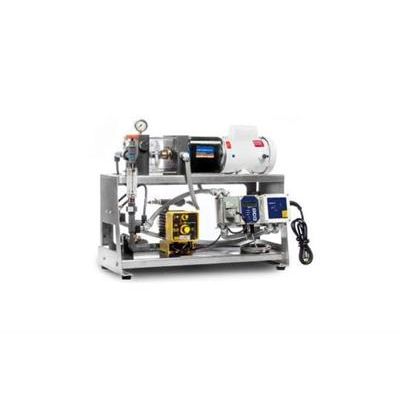

- Model M-Lo Series - Polymer Feed System

From

0

The PolyBlend M-Lo Series polymer feed system offers all of the benefits of the best available polymer preparation technology at a new competitive price. The readyto- install system provides consistent and accurate dosage and improves polymer efficiency.

The PolyBlend M-Lo System is engineered for easy installation and maintenance. The compact size of the feeder allows trouble-free installation in confined spaces and the open-frame design facilitates easy component access.

The REM-1E controller is included to provide speed control for the neat polymer pump. The easy to read LCD display indicates strokes per minute (SPM) or strokes per hour (SPH). The microprocessorbased controller is housed in a NEMA 4X enclosure.

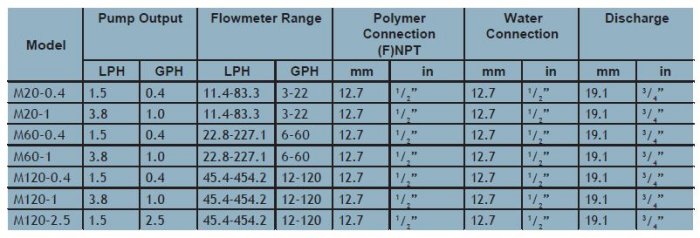

The PolyBlend M-Lo Series polymer feed system is available in several models. The versatility of the PolyBlend M-Lo System provides a choice of wide range of dosage rates. Multiple configurations offer the flexibility for most polymer feed applications.

  • Improved polymer efficiency
  • Easy installation & maintenance
  • Rugged & reliable design
  • Direct drive mix chamber
  • Pump interchangeability
  • Simple electronic controls
  • Competitive price

  • Power: 115 VAC / 60 Hz / 1 Phase / 10A
  • Dimensions (W x H x D): 685.8 x 673.1 x 228.6 mm
  • 27” x 26.5” x 9”
  • Polymer pump: Electronic Metering
  • Material: 304 SS Frame / PVC
  • Controls: Microprocessor-based REM-1E
  • Connections: Water In: 12.7 mm (F) NPT (1/2”)
  • Discharge: 19.05 mm (F)NPT (3/4”)
  • Polymer: 12.7 mm (F)NPT (1/2”)

1 Base Assembly
2 Solenoid Valve
3 Priming Port, Pump
4 Differential Pressure Switch
5 Flowmeter
6 Flow Control Valve
7 Digital Display Pump Controller, REM-1E
8 Motor
9 Solenoid Valve
10 Water Inlet
11 Polymer Inlet
12 Mix Chamber Assembly
13 Solution Discharge
14 Pressure Gauge
15 On/Off Main Power Switch
16 Mixer Motor Switch
17 Fuse (Qty 2)
18 Power Cord
19 DP Switch Relay Box
