Monoxivent - Portable Fume Eliminator without Fan

SHARE

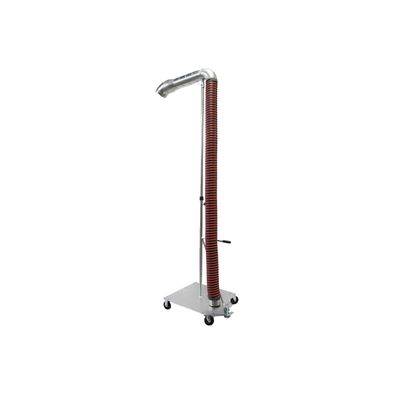

The Portable Fume ELIMINATOR was developed for use in shops where a conventional overhead or under-floor exhaust system is not practical. It is ideal for truck, bus, agricultural and construction equipment applications that require fume extraction.The ELIMINATOR is a compact, self-contained portable exhaust system. The compact base with a footprint of 30” x 30” makes storing the Portable Fume ELIMINATOR easy. Depending on the model, the vertical mast has a stored height of 90” or 120”. The adjustable mast can be easily raised or lowered to fit all top and mid-body exhaust pipes. Summary - BASIC BASE PLATE MODEL, without fan: Base plate, telescoping mast, vertical stack nozzle with straight end or 45-degree end

Most popular related searches
fume eliminator
vehicle emissions filter
exhaust pipe
exhauster system
hose drop
telescopic mast
emissions filter
vehicle emissions
mobile filter system
portable containment system

For under chassis, simply uncouple the hose on the vertical mast and couple it to an under chassis clamping nozzle. For truck applications, the main vertical stack features a 45-degree end with an 8” opening. The configuration allows for use with straight, taper cut, turn out, and rain cap vertical stacks. For bus applications, or for vehicles with a high horizontal exit exhaust pipe, the ELIMINATOR features a straight end with an 8” mouth. This model is, typically, used to connect to an existing hose drop.
