Metrohm - Model 946 - 2.946.0020 -Portable Heavy Metal Analyzer (SPE)
FromMetrohm AG

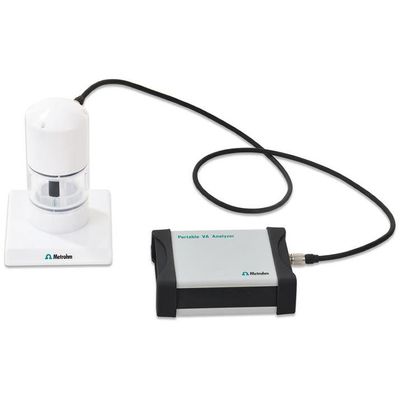

Portable metal analyzer for the determination of heavy metals. Device version for screen-printed electrodes (SPE). The system is comprised of potentiostat and separate measuring stand with integrated stirrer and replaceable electrode. The instrument is operated with the Portable VA Analyzer software. The power is supplied via the USB connector and via the integrated rechargeable battery. The device is supplied with all required accessories in a carrying case. Screen-printed electrodes are not included in the scope of delivery.
Most popular related searches
portable metals analyzer
screen-printed electrode
heavy metals
metals analyzer
portable heavy metals analyzer
portable analyzer
heavy metals analyzer
analysis system
potentiostat
solid phase extraction system
- Dimensions in mm (W/H/D) : 132/36/100
- Dimensions remark : Potentiostat
Potentiostat
- Sweep potential range: ±4 V
- Max. measured current: ±40 mA
- Resolution of measured current (in the smallest measuring range): 1 pA
Current measurement techniques
- DP ("Differential Pulse")
- SQW ("Square Wave")
- LS ("Linear Sweep")
Calibration techniques
- Standard addition
Sensor
- Screen-printed electrodes (SPE) are not included in the scope of delivery
- scTRACE Gold with separate measuring head
Interfaces
- Integrated USB interface
- Proprietary connector for the measuring stand
- Connector for control lines
