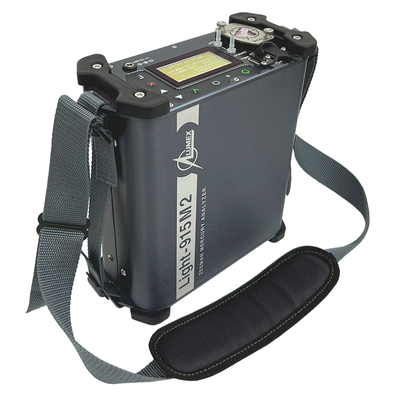

Lumex - Model Zeeman Light-915M2 -Portable Mercury-in-Air Analyzer
Light-915M2 is a portable mercury analyzer, designed for easy transportation and on-site Hg measurement without compromising accuracy. Its compact size, lightweight design, and high battery capacity make it ideal for fieldwork and remote locations, offering reliable performance wherever it`s needed. Light-915M2 is a compact instrument engineered for convenient direct analysis of mercury in air. Its key benefits such as real-time operation, low detection limit, and a robust design make it a perfect tool to address problems of mercury pollution in a workplace environment and sanitary control.
- Atomic absorption spectrometry at 254 nm with Zeeman correction for interference-free measurements.
- Environmental and workplace monitoring
- Industrial hygiene and safety surveying
- Indoor and outdoor mercury pollution revealing and mapping
- Emergency response to mercury spills
- Demercurization control
- Contaminated equipment and hazardous waste inspection
- Low detection limit 0.02 μg/m3
- Measurement range from 0 to 200 µg/m3
- High selectivity
- Long-term calibration stability
- Real-time measurement with 1 second response
- Fully automated with built-in test cell and auto zero
- Automatic zero drift and span drift correction
- No memory effect
- Integrated storage for 12 days of data acquisition
- Battery up to 15 hours of continuous operation (charging time is 3.5 hours)
- Robust design
- Easy to use and maintain
Light-915M2 portable Zeeman mercury analyzer delivery set includes:
- power supply unit;
- shoulder strap;
- intake hose (3 pcs);
- dust filters (10 pcs);
- interface cables;
- calibration certificate;
- manual.
Light-915M2 mercury analyzer is covered by a full 1-year warranty.
Upon request, installation and commissioning of the equipment can be carried out at customer’s site by our service engineers or by a certified distributor. Support and training of operators, meeting customer’s specific needs, are provided by highly qualified application specialists.
- Measurement principle: Atomic absorption spectrometry at 254 nm with Zeeman correction of background absorption
- Detection limit: 0.02 μg/m3
- Measurement range: 0 to 200 µg/m3
- Analysis time: Direct real-time; 1 s response time
- Data logger: up to 12 days of data acquisition
- Sampling flow rate: 1 l/min
- Digital output:
- USB-B data exchange interface;
- USB-A host connector for peripheral device and data transfer to USB drive
- Power supply:
- Built-in battery (up to 15 hours of continuous operation)
- external power adapter 100/240 VAC / 18 VDC (included)
- Power consumption: Max. 40 W
- Dimensions: 264x242x110 mm
- Weight: 4.3 kg
