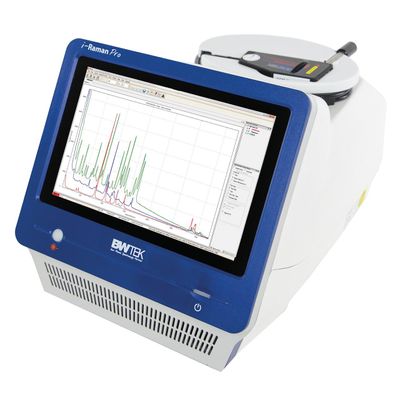

Metrohm i-Raman - Model Pro 785H - BWT-840000486 -Portable Raman Spectrometer
The i-Raman® Pro 785H is a fully integrated Raman system with an embedded tablet computer and a light-guide sampling probe, offering users high-sensitivity, high-resolution, research-grade, portable Raman analyses. Using a high-quantum-efficiency CCD array detector with TE deep cooling and high dynamic range, the portable i-Raman® Pro system delivers excellent signal-to-noise ratio, even with applications requiring long integration times.
In addition to its portable construction, the i-Raman Pro 785H features the unique combination of wide spectral coverage and high resolution, thus enabling measurements from 65 cm-1 to 2,800 cm-1. The i-Raman Pro can be battery-operated for easy portability, providing research-grade Raman analysis capabilities for high-precision qualitative and quantitative work wherever needed.
- Laser Power: 340 mW, nominal at exiting probe / 455 mW, nominal at laser port
- Laser Wavelength (nm): 785 nm
- Laser Power Control: 0% to 100% (adjustable in 1% steps)
- Range: 65–2800 cm-1
- Resolution: < 3.5 cm-1 at 912 nm
- Detector Type: High Quantum Efficiency CCD Array
- CCD Temperature (°C): -25°C
- Integration time: 7 ms – 30 mins
- Computer interface: USB 2.0
- Trigger: Yes (compatible with B&W Tek probes)
- DC Power Adapter Input: 100–240 V AC 50/60 Hz
- DC Power Adapter Output: 12 V DC at 6.6 A
- Battery: Optional
- Dimensions: 40 cm x 26 cm x 25 cm
- Weight: ~8.8 kg
- Operating Temperature (°C): 0°C – 35°C
- Humidity: 10% to 85%, non-condensing
