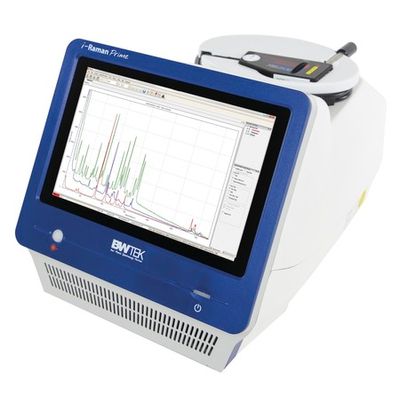

Metrohm - Model i-Raman Prime 532H BWT-840000673 -Portable Raman Spectrometer
The i-Raman® Prime 532H is a low-noise, high-throughput, and fully integrated Raman system with an embedded tablet computer and a fiber-optic sampling probe. Using a high-quantum-efficiency CCD array detector with TE deep cooling (-25 °C) and high dynamic range, this portable Raman spectrometer delivers research-grade Raman analysis capabilities, including real-time quantitation and identification. The high throughput gives Raman spectra with excellent signal-to-noise ratio, making it possible to measure rapid processes and to measure even the slightest Raman signals, detecting subtle sample differences.
In addition to its portable construction, the i-Raman Prime 532H features the unique combination of wide spectral coverage and high resolution, thus enabling measurements from 150 cm-1 to 3400 cm-1. The i-Raman Prime can be battery-operated for easy portability, providing research-grade Raman analysis capabilities for high-precision qualitative and quantitative work wherever needed. The system is optimized for use with our STRaman® technology for analyses through non-transparent packaging.
- Battery: Optional
- CCD Temperature (°C): -25°C
- Computer interface: USB 2.0
- DC Power Adapter Input: 100–240 V AC 50/60 Hz
- DC Power Adapter Output: 12 V DC at 6.6 A
- Detector Type: High Quantum Efficiency CCD Array
- Dimensions: 40 cm x 26 cm x 25 cm
- Humidity: 10% to 85%, non-condensing
- Integration time: 7 ms – 30 mins
- Laser Power: 35 mW, nominal at exiting probe / 42 mW, nominal at laser port
- Laser Power Control: 0% to 100% (adjustable in 1% steps)
- Laser Wavelength (nm): 532 nm
- Operating Temperature (°C): 0°C – 35°C
- Range: 150 – 3400 cm-1
- Resolution: <; 8.0 cm-1 at 614 nm
- Trigger: Yes (compatible with B&W Tek probes)
- Weight: ~8.8 kg
