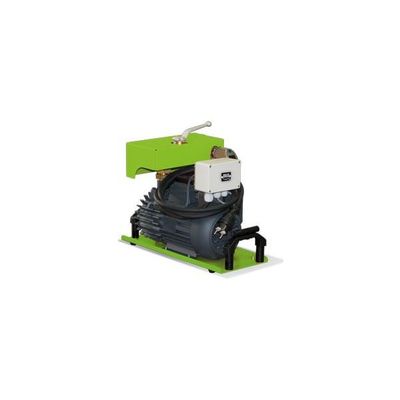

DILO - Portable Vacuum Pump Unit for the Evacuation of Air
Technical data: Dimensions: Length 435 mm, Width 270 mm, Height 370 mm. Weight: 29 kg. Standard equipment: Vacuum pump for evacuation of air 16 m³/h (at 50 Hz) and 19 m³/h (at 60 Hz), final vacuum < 1 mbar. DILO couplings DN20. Ball valve or solenoid valve DN20. Digital vacuum indication (0 - 400 mbar). 3 m long electrical connecting cable. Operating manual.
Most popular related searches
C4/C5-B078R09 (with ball valve)
Operating voltage: 208 - 240 V / 50 - 60 Hz alternating current
C4/C5-B078R09S15 (with ball valve)
Operating voltage: 110 - 127 V / 60 Hz alternating current
C4/C5-B078R19 (with solenoid valve)
Operating voltage: 208 - 240 V / 50 - 60 Hz alternating current
C4/C5-B078R19S15 (with solenoid valve)
Operating voltage: 110 - 127 V / 60 Hz alternating current
